13 62 531 Replacing coolant temperature sensor (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform these tasks on an engine that has cooled down.

NOTE: Read out fault memory of DME control unit. Switch off ignition.

E65 only. E66:

Remove design cover.

Recycling

Catch and dispose of escaping coolant.

Observe country-specific waste-disposal regulations.

Coolant temperature sensor is mounted on water pipe at front.

Unlock plug (1) and remove.

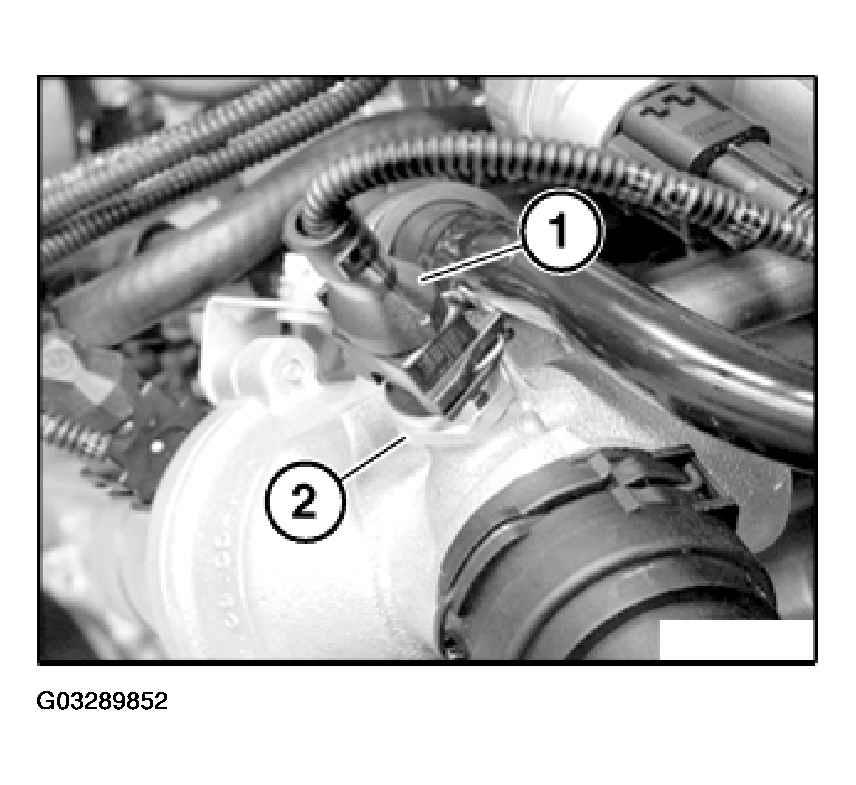

Fig 1: Releasing Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release temperature sensor (2).

Installation:

Tightening torque 13 62 2AZ.FUEL SYSTEM - TIGHTENING TORQUES .

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62) .

If necessary, top up coolant.

NOTE: Now clear the fault memory.
