24 34... Notes on mechatronics (GA6HP26Z/GA6HP32Z/GA6HP19Z)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 24 2 390 . See AUTOMATIC TRANSMISSION - SPECIAL TOOLS .
IMPORTANT:
After completing work:
- Load specific data version with DIS
- Check transmission fluid level. See 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP 19Z) .
Use only approved transmission fluid . See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
. See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.

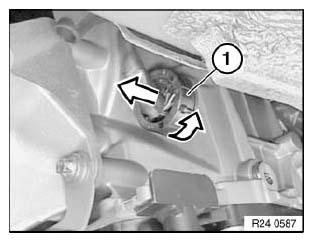

Unscrew plug (1) and disconnect.

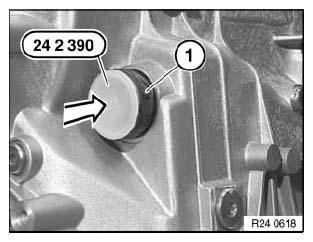

Insert special tool 24 2 390 in sealing sleeve (1).
