54 34... Opening/Closing Convertible Top In Event Of a Technical Fault

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Always conduct convertible top movements with the assistance of a second person (risk of damage).

Make sure force is always exerted uniformly to the convertible top sides otherwise the frame will be bent.

Necessary preliminary tasks:

Front doors must be permanently opened
Lower rear side windows fully

Opening convertible top in event of a technical fault:

Unlocking convertible top compartment lid:

Open rear lid
Pop actuator button (1) on left and right out of luggage compartment trim panel.
Pull actuator button (1) on left and right and unlock convertible top compartment lid.
Close rear lid.

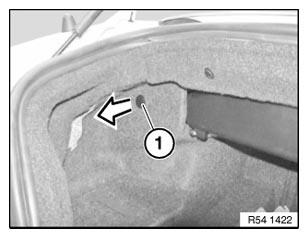

Fig 1: Identifying Actuator Button
Courtesy of BMW OF NORTH AMERICA, INC.

Unlocking convertible top lock:

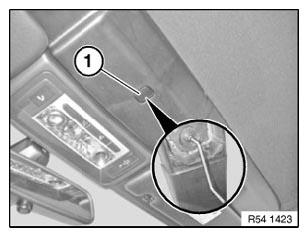

Lever out cover (1) with plastic wedge
Insert double offset hexagon socket (on-board tool kit) and drive with ball of hand onto attachment until coupling can be felt to engage
Release lock completely by turning counterclockwise
If necessary, refit cover (1).

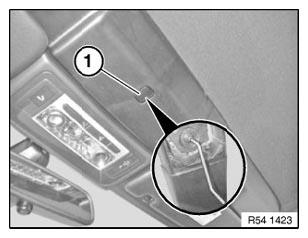

Fig 2: Identifying Refit Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Stowing convertible top by hand:

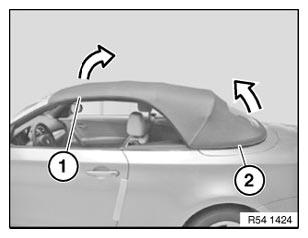

Contact points at guide rails (1) and clamping bar (2)
Raise convertible top bow and clamping bar

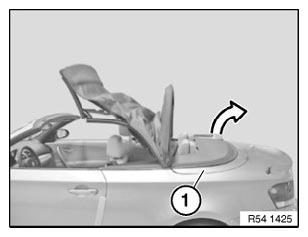

Fig 3: Raising Convertible Top Bow & Clamping Bar
Courtesy of BMW OF NORTH AMERICA, INC.

Stowing convertible top by hand:

Open convertible top compartment lid (1) slowly

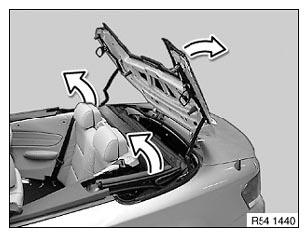

Fig 4: Opening Convertible Top Compartment Lid
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Check following status without fail after opening convertible top compartment lid.

Roller for crash protection must not be extended.

Left half of picture = roller extended = incorrect
Right half of picture = roller retracted = correct

If roller is extended, close and then open convertible top compartment lid again.

If necessary, repeat procedure.

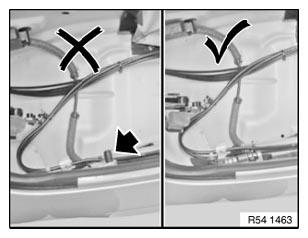

Fig 5: Identifying Convertible Top Compartment Lid Correct & Incorrect Position

Courtesy of BMW OF NORTH AMERICA, INC.

Stowing convertible top by hand:

Stow clamping bar (2) in convertible top compartment
Fold convertible top (1) and stow in convertible top compartment
Close convertible top compartment lid

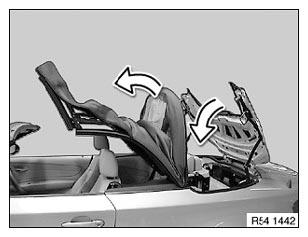

Fig 6: Folding Convertible Top & Stow In Convertible Top Compartment
Courtesy of BMW OF NORTH AMERICA, INC.

Closing convertible top in event of a technical fault:

Unlocking convertible top compartment lid:

Open rear lid
Pop actuator button (1) on left and right out of luggage compartment trim panel.
Pull actuator button (1) on left and right and unlock convertible top compartment lid.
Close rear lid.

Fig 7: Identifying Actuator Button
Courtesy of BMW OF NORTH AMERICA, INC.

Lifting convertible top by hand out of convertible top compartment:

Open convertible top compartment lid.
Contact points at convertible top bows and clamping bar
Lift convertible top bows and clamping bar uniformly on left and right

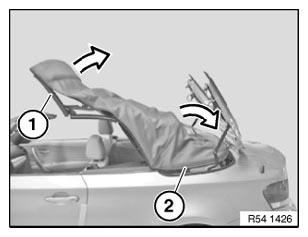

Fig 8: Lifting Convertible Top Bows And Clamping Bar
Courtesy of BMW OF NORTH AMERICA, INC.
Unfold convertible top uniformly on left and right

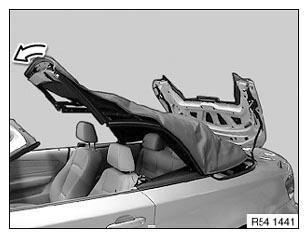

Fig 9: Unfolding Convertible Top Uniformly On Left And Right
Courtesy of BMW OF NORTH AMERICA, INC.
Lift clamping bar out of convertible top compartment
Close convertible top compartment lid

Fig 10: Lifting Clamping Bar Out Of Convertible Top Compartment
Courtesy of BMW OF NORTH AMERICA, INC.
Uniformly press clamping bar onto convertible top compartment lid
Press convertible top bow onto cowl panel and simultaneously fasten convertible top lock

Fig 11: Pressing Clamping Bar Onto Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening convertible top lock:

Lever out cover (1) with plastic wedge
Insert double offset hexagon socket (on-board tool kit) and drive with ball of hand onto attachment until coupling can be felt to engage
Fasten lock completely by turning clockwise
Refit cover (1).

Fig 12: Identifying Refit Cover
Courtesy of BMW OF NORTH AMERICA, INC.
