Special Tools Required

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

54 3 240
54 3 241
54 3 242
54 3 243
54 3 250
54 3 260
54 3 270

For convertible top removal the universal lifting gear must be combined with individual tools specifically suitable for the E88.

NOTE: Observe operating instructions for universal lifting gear without fail.

Lifting gear:

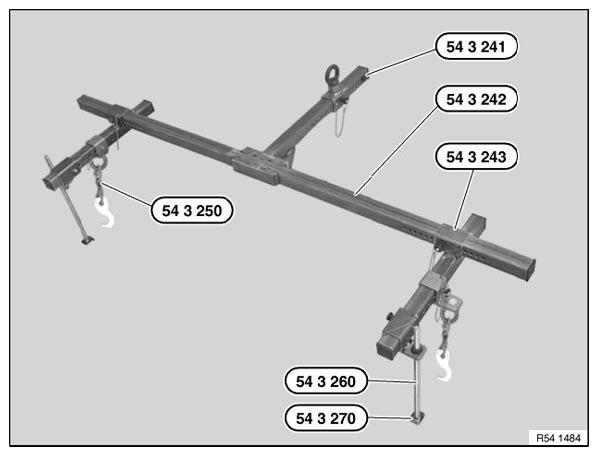

Fig 1: Identifying Special Tool Lifting Gear E88

Courtesy of BMW OF NORTH AMERICA, INC.

The lifting gear 54 3 240 comprises the following individual parts:

54 3 241 Longitudinal tube with lifting eye and screws
54 3 242 Cross-beam
54 3 243 Extension arm, left and right

in conjunction with:

54 3 250 Adapter with chain and hook, left and right
54 3 260 Adapter with counterholder, left and right
54 3 270 Shaped piece for counterholder, left and right

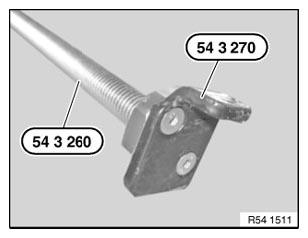

Screw down shaped piece 54 3 270 on adapter with counterholder 54 3 260, left and right.

Fig 2: Identifying Special Tool Adapter With Counterholder Left & Right

Courtesy of BMW OF NORTH AMERICA, INC.

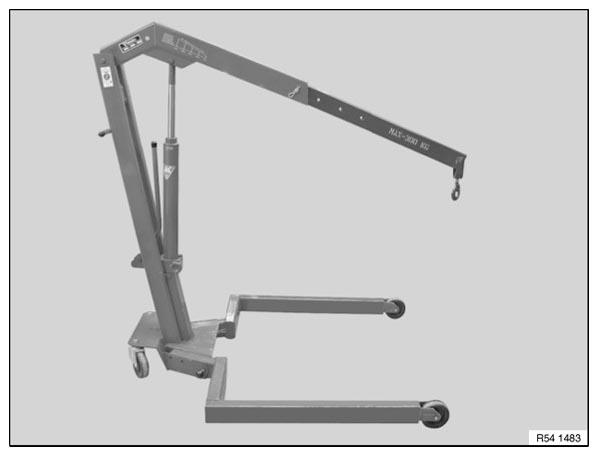

Fig 3: Identifying Special Tool Lifting Arm

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Use lifting gear and assembly carrier only in conjunction with BMW WJN.10 workshop crane (special lifting arm with 1690 mm arm length - refer to BMW Workshop Equipment Catalogue) or a crane with comparable specifications.

Adjustments of lifting tool especially for E88:

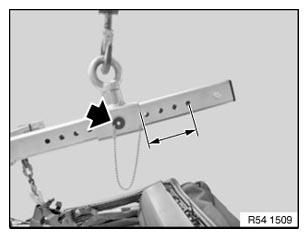

Adjust lifting eye measured two holes from rear on longitudinal tube.

Secure adjustment with ball locking pin.

Fig 4: Identifying Longitudinal Tube Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

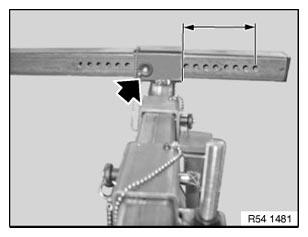

Adjust left and right extension arms measured eight holes from outside on cross-beam.

Secure adjustment with ball locking pin.

Fig 5: Identifying Left & Right Extension Arms Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

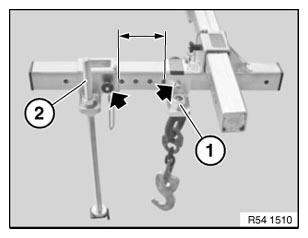

Adjust adapter with chain (1) in specified hole on extension arm.

Secure adjustment with ball locking pin.

Adjust adapter with counterholder (2) measured four holes from adapter chain on extension arm.

Secure adjustment with ball locking pin.

Fig 6: Identifying Extension Arms Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
