61 34... Removing and installing/replacing socket in rear console
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR CONSOLE

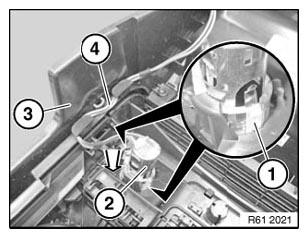

Unlock catches (1) with a suitable tool.
Press socket (2) in direction of arrow out of rear console (3).
Feed wiring harness (4) out of rear console (3) and remove socket (2).
Installation:
Make sure socket (2) is correctly seated in rear console (3).
Make sure wiring harness (4) is laid correctly.
