61 13... Cutting off, stripping insulation and cutting optical fibres to length: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

NOTE:

See GENERAL ELECTRICAL SYSTEM - SPECIAL TOOL

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320 .

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

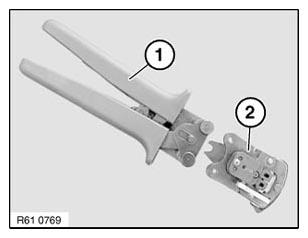

Fig 1: Identifying Crimping Head And Pliers

Courtesy of BMW OF NORTH AMERICA, INC.
