61 13... In-line plugs, 6- to 50-pin, System Elo

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

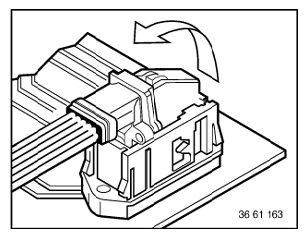

Unlock lock.

Fig 1: Identifying Unlock Lock

G06213358

Courtesy of BMW OF NORTH AMERICA, INC.

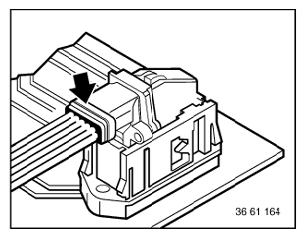

Unfasten cable clip.

Installation:

Cable clip must be reinstalled.

Fig 2: Identifying Cable Clip

G06213359

Courtesy of BMW OF NORTH AMERICA, INC.

Detach catch (1) from plug housing (2).

Fig 3: Detaching Catch From Plug Housing

G06213360

Courtesy of BMW OF NORTH AMERICA, INC.

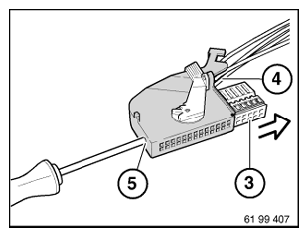

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Press Out Contact Carrier With Wiring Harness Through Opening

G06213361

Courtesy of BMW OF NORTH AMERICA, INC.

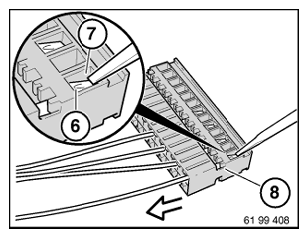

Hold down arrester hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Identifying Arrester Hook And Secondary Lock

G06213362

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down arrester hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Holding Arrester Hook In Secondary Lock

G06213363

Courtesy of BMW OF NORTH AMERICA, INC.
