32 43 010 Removing and installing/replacing control unit for active front steering

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work

Disconnect BATTERY EARTH LEAD
RELEASE LEFT FRONT SEAT and tilt towards rear
Remove front left DOOR SILL COVER STRIP .
Remove footwell SIDE TRIM PANEL on A-pillar.
Remove cover of BASS SPEAKER at left front.

Fold back front left carpet to one side.

Unscrew nuts (1).

Tightening torque 32 43 1AZ .

Installation note:

Secure grounding strap (2) to screw fastening point.

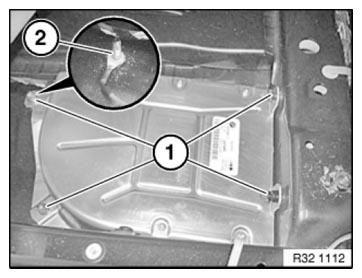

Fig 1: Identifying Strap And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 32 43 2AZ .

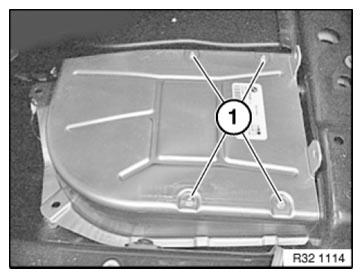

Fig 2: Identifying Control Unit Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove control unit.

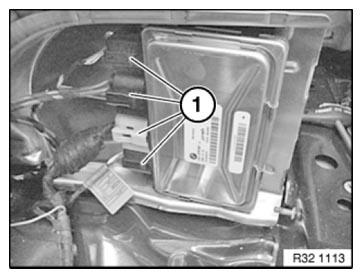

Fig 3: Identifying Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Replacement only: Carry out PROGRAMMING/ENCODING .
ADJUSTMENT FOR ACTIVE STEERING .
