61 13... Inline plugs, 4-, 10-pin, System Elo

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

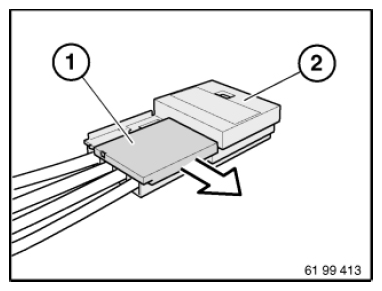

Detach fastener (1) from contact carrier (2).

Fig 1: Disconnecting Fastener From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

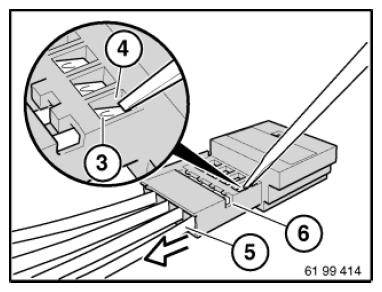

Hold down retaining hook (3) of defective contact and pull cable and contact up to secondary lock (6).

Fig 2: Pulling Cable And Contact (Up to Secondary Lock)

Courtesy of BMW OF NORTH AMERICA, INC.

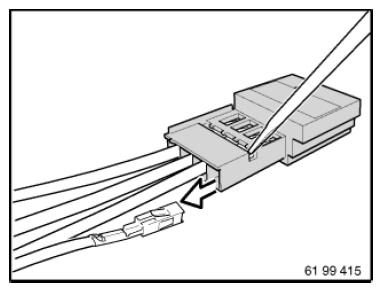

Hold down retaining hook once again in secondary lock and pull cable and contact completely out of contact carrier.

Fig 3: Pulling Cable And Contact Completely Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
