63 99... Notes for replacing the protective cap of the headlight

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Damaged seals on the protective caps will lead to moisture penetration into the headlight.

This will in turn cause porous cable insulations and malfunctioning of the headlight.

When working on the headlight system, check the protective cap seals.

Replace the protective cap in the event of damage!

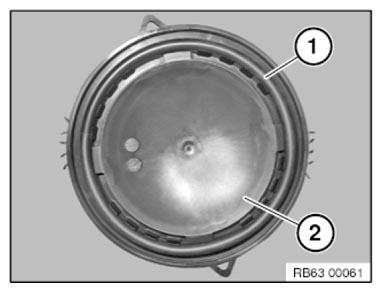

Example: screwed protective cap

Seal (1) on protective cap (2).

Fig 1: Identifying Seal On Protective Cap (Screwed Protective Cap)

Courtesy of BMW OF NORTH AMERICA, INC.

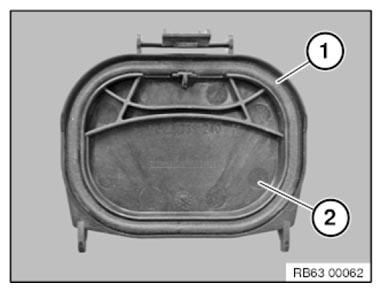

Example: latchable protective cap

Seal (1) on protective cap (2).

Fig 2: Identifying Seal On Protective Cap (Latchable Protective Cap)

Courtesy of BMW OF NORTH AMERICA, INC.
