52 25... Removing and installing armrest storage tray

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER AND BUTTON .
Remove BASE PLATE .

Release screws (1).

To remove storage tray, raise cover (2) slightly.

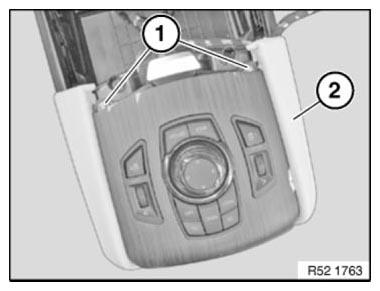

Fig 1: Identifying Armrest Storage Tray Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press the marked area to unlock the storage tray.

Remove storage tray upward at the same time.

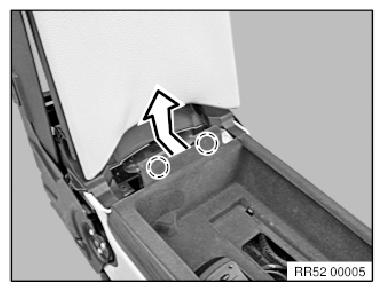

Fig 2: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
