63 10... Adjust headlights for targeted illumination (Dynamic Light Spot) (with headlight adjustment device MAHA Lite 3 as of software Version V 0.78...)
Repair instructions apply only to software release from version V 0.78...
Software release is shown for a short time in the display after the device is switched on.
Comply with TEST PREREQUISITES for headlight adjustment.
Refer to the manufacturer's operating instructions for the headlight adjustment device!
- After removing and installing/replacing the Dynamic Light Spot headlight
- After removing and installing/replacing the front bumper panel
- In the event of customer complaints about the lighting performance
Switch on the headlight adjustment device by pressing any button.
Press F2 button. The shown display screen appears.
Perform the following settings:
- The passenger car must be selected.
- Enter the setting dimension of the Dynamic Light Spot via the buttons F1/F2: 0 %
- The right / left-hand traffic must be selected according to the country.
- Select the headlight type via the button F3
:
- EC LED
The adjusted values are adopted for future measurements.
Switch the ignition on.
Perform test procedure via path:
- Body
- Lights
- Targeted headlight illumination

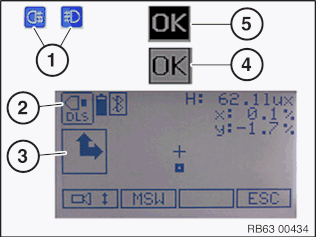

Press the button for the respective side of the vehicle (1) until symbol (2) appears.
The following symbols appear in the display:
- O. K. (5): Adjustment is optimal.
- O. K. (4): Setting lies in the legal tolerance range. Adjust Dynamic Light Spot headlight until O. K. (5) is displayed.
- Arrows (3): Setting is incorrect. Use the arrows (3) to adjust the Dynamic Light Spot headlight until O. K. (5) is displayed.

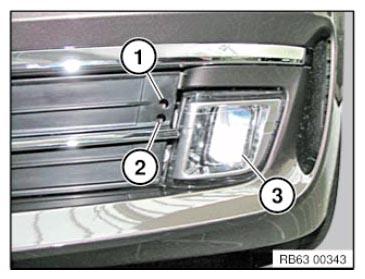

If necessary, adjust Dynamic Light Spot headlight (3) with screws (1, 2).
Upper screw (1) is for height adjustment.
Lower screw (2) is for lateral adjustment.
