52 17... Replacing upholstery for front seat thigh support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove THIGH SUPPORT

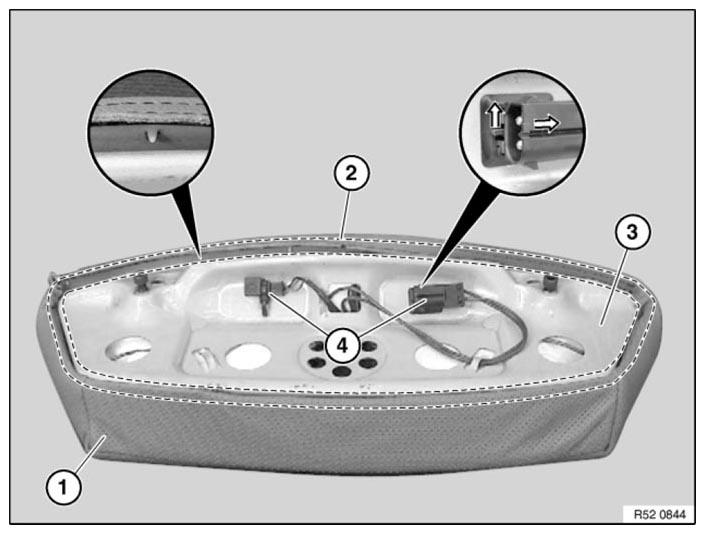

Fig 1: Removing Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic shows versions with air conditioning and seat heating.
Lever out cover welt in area (2).
Installation note:
Cover welt is fastened by hooks in trim (3).
Remove plug connections (4) and feed out through cover (3).
Remove trim cover (3) from upholstery and cover (1).

Version with seat heating or air conditioning:

Feed out cable (1) and remove upholstery (2).

Installation note:

Ensure correct cable routing (1).

Fig 2: Identifying Cable And Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Version with air conditioning:

Remove separating net (1).
Lift out fan (2).

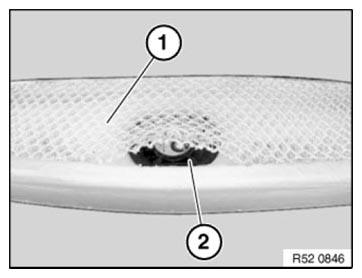

Fig 3: Identifying Separating Net And Fan
Courtesy of BMW OF NORTH AMERICA, INC.
