63 10... Adjusting dynamic light spot headlight (with non-electronic headlight adjustment device)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Comply with test prerequisites for HEADLIGHT ADJUSTMENT .
Functional description of Dynamic Light Spot: see LEFT-HAND TARGETED ILLUMINATION AND RIGHT-HAND TARGETED ILLUMINATION .
Refer to the manufacturer's operating instructions for the headlight adjustment device!
NOTE:
Dynamic Light Spot headlight must be adjusted in the following cases:
- After removing and installing/replacing the Dynamic Light Spot headlight
- After removing and installing/replacing the front bumper panel
- In the event of customer complaints about the lighting performance
Switch the ignition on.
Perform test procedure via path:
- Body
- Lights
- Targeted headlight illumination
Adjust headlight setting dimension on headlight adjustment device: 0 %
NOTE:

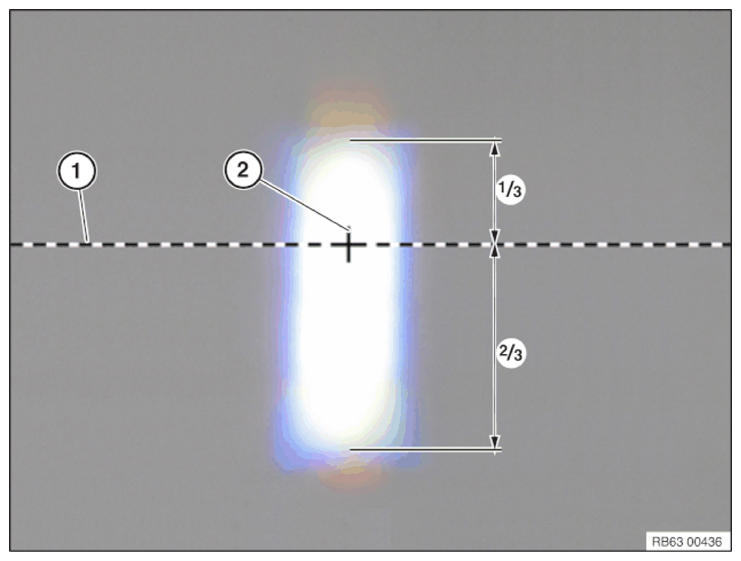

The graphic schematically shows the light pattern of the dynamic spot headlight on the projection surface in the inspection glass of a headlight adjustment device.
The proportions shown in the graphic are examples and may differ from a real pattern.
The proportions shown in the graphic are examples and may differ from a real pattern.
- horizontal line = dividing line for reference axis of light/dark boundary for the low-beam headlight
- vertical line = break point of light/dark boundary for the asymmetric low-beam headlight
Light pattern of dynamic spot headlight must be positioned as follows:
- 1/3 must lie above and 2/3 below the horizontal line (1).
- Vertical line (2) must be in the middle.
If necessary, adjust headlights for targeted illumination.
