13..... Remove intake part (Version 2)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

The following points must be strictly observed prior to starting work :

Observe SAFETY INFORMATION for handling hybrid cars

Necessary preliminary tasks:

Remove TRAILING LINK .

Press in latch mechanisms on intake silencer housing.

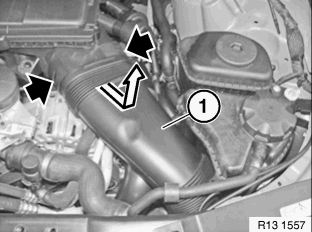

Feed out intake duct (1) towards top.

Fig 1: Feed Out Duct Toward Top

Courtesy of BMW OF NORTH AMERICA, INC.

Press in latch mechanism (1).

Detach intake port (2) towards rear and remove.

Fig 2: Detach Intake Duct Toward Rear

Courtesy of BMW OF NORTH AMERICA, INC.
