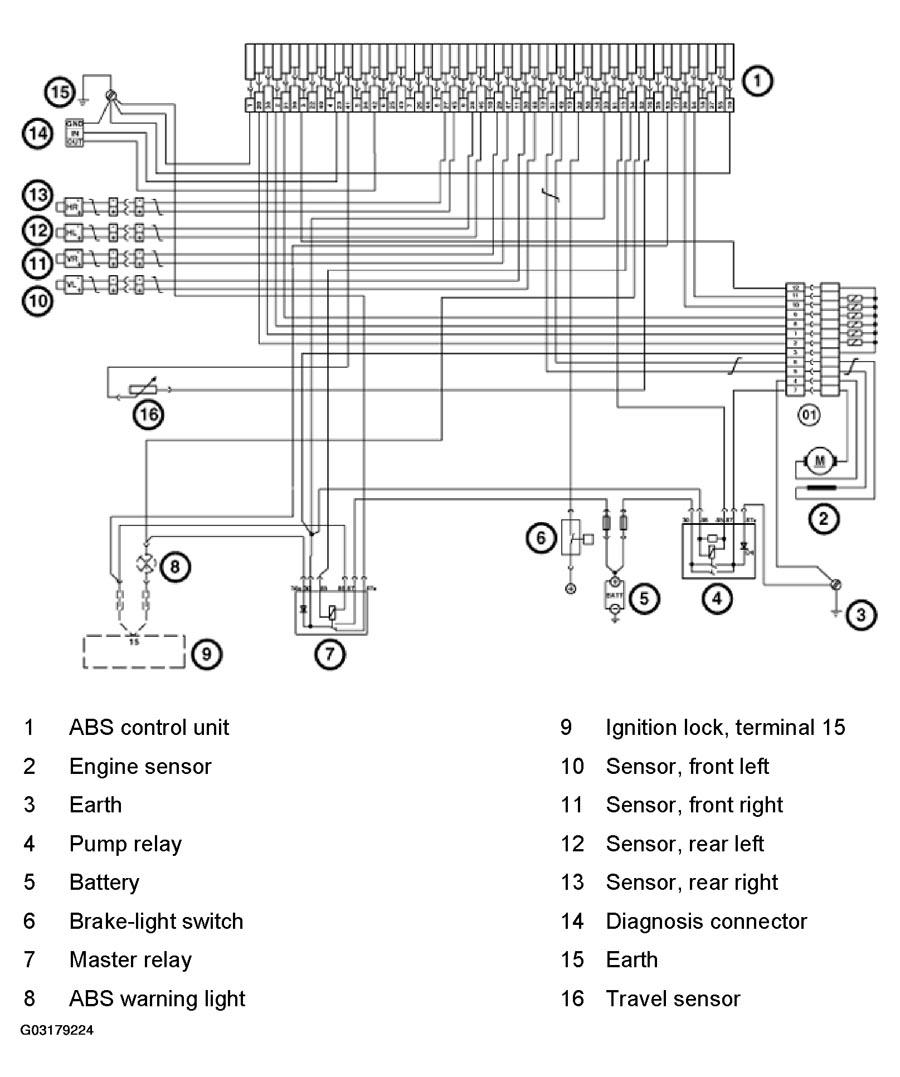

61 12 ... ABS Wiring Diagram
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For troubleshooting pin assignment, refer to INTRODUCTION
in Pin Voltage Charts.
