52 13 ... Removing And Installing/Replacing Trim For Release Handle On Left Or Right Front Seat (Normal/Manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove release handle on left or right front seat.

refer to 52 14 033 REMOVING AND INSTALLING/REPLACING RELEASE HANDLE ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Unlock catches from outside by applying light pressure through trim slot and remove trim from side.

Fig 1: Removing Trim From Side

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On both sides on passenger seat.

Installation:

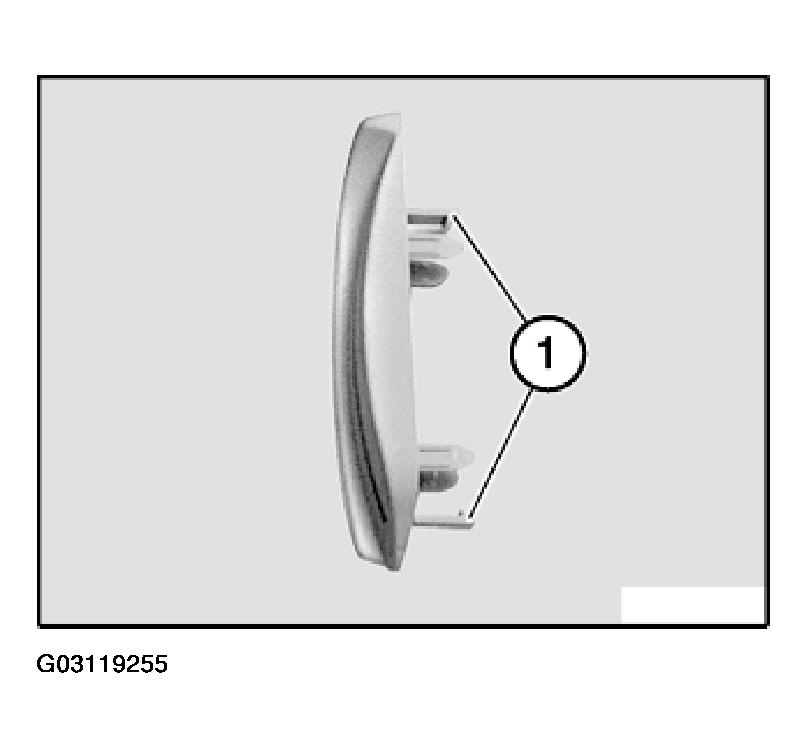

Catches (1) on trim must not be damaged.

Fig 2: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
