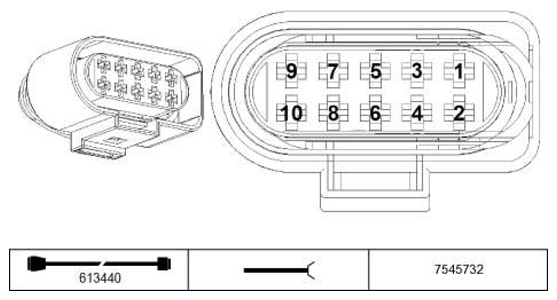

Transmission Shift Device SX11632A Connector End View
Pin Assignments At Plug Connector X11632
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Switch signal | Transmission control |
| 2 | A | Signal, selector lever position, P/N | Car access system |
| 3 | M | Ground | Ground connection X175 |
| 4 | E | Voltage supply | Fuse F19 |
| 5 | E | Switch signal | Transmission control |
| 6 | -- | Not occupied | |
| 7 | E | Switch signal | Transmission control |
| 8 | -- | Not occupied | |
| 9 | E | Switch signal | Transmission control |
| 10 | -- | Not occupied |
