61 31 492 Replacing level switch for windscreen washer system

Necessary preliminary tasks:

Current version:

NOTE: Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Pull the level switch for window washer system (3) out of the washer fluid reservoir in the direction of the arrow.

Fig 1: Pulling Level Switch Out Of Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grommet (2) must not be damaged.

Install the grommet (2) in the washer fluid reservoir first.

Make sure that the grommet (2) and level switch for the window washer system (3) are correctly fitted at the washer fluid reservoir.

Fill washer fluid reservoir.

New version:

Disconnect plug connection (1).

Turn the level switch for the windscreen washer system (2) in direction of arrow.

Pull the level switch for the window washer system (2) out of the washer fluid reservoir (3) toward the bottom.

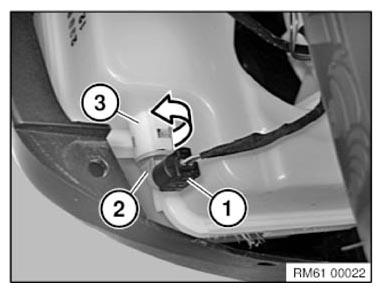

Fig 2: Turning Level Switch And Removing From Fluid Reservoir (New Version)

Courtesy of BMW OF NORTH AMERICA, INC.
