66 20 508 Removing And Installing (Replacing) Control Unit (Park Distance Control)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

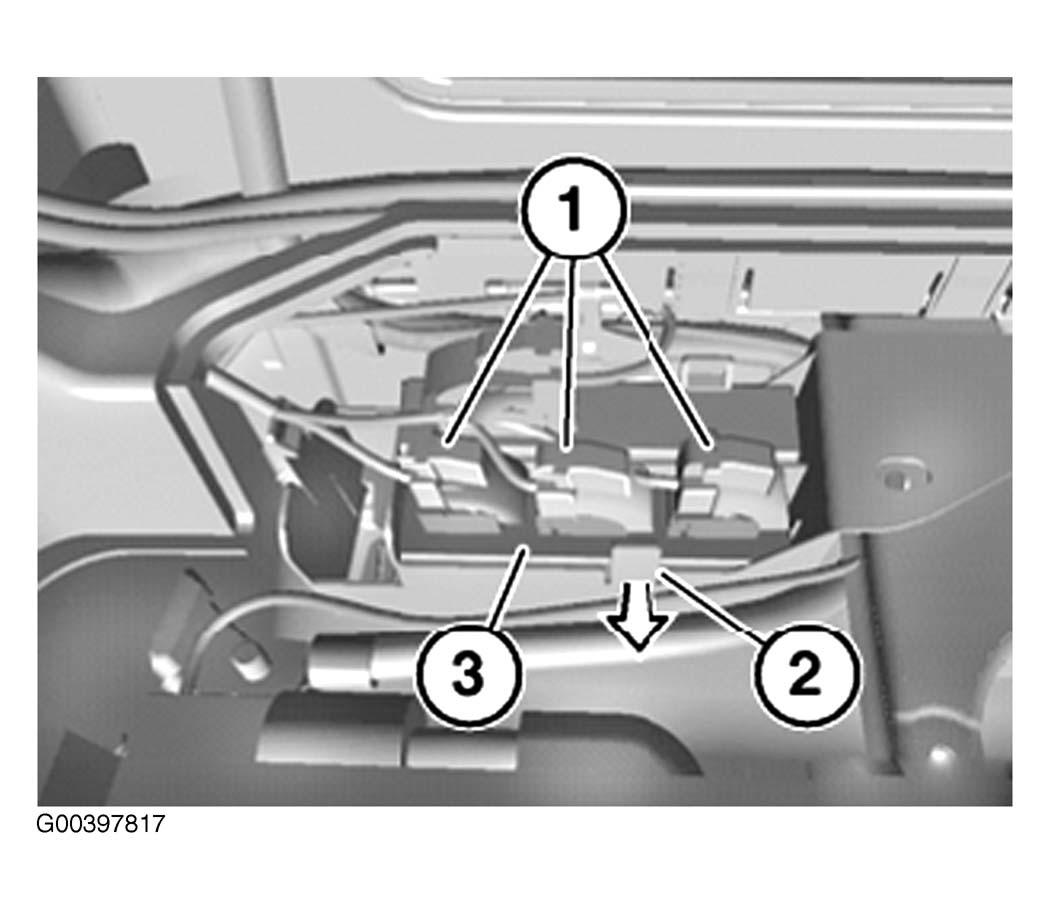

Disconnect plug connections (1). Unlock catch (2) in direction of arrow and pull out control unit (3) towards top.
Replacement:

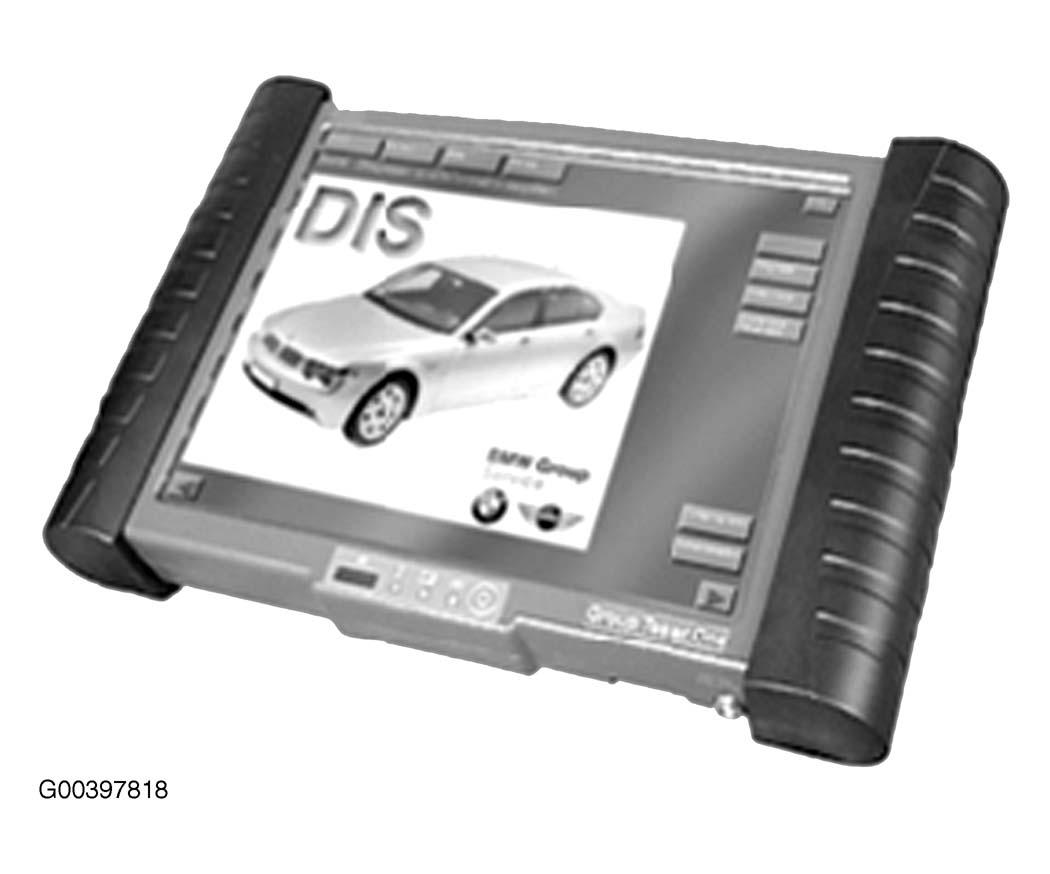

Carry out coding/programming. Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
