61 13... Cutting off, stripping insulation and cutting optical fibres to length: Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3 SERIES (E46)

61 4 320

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

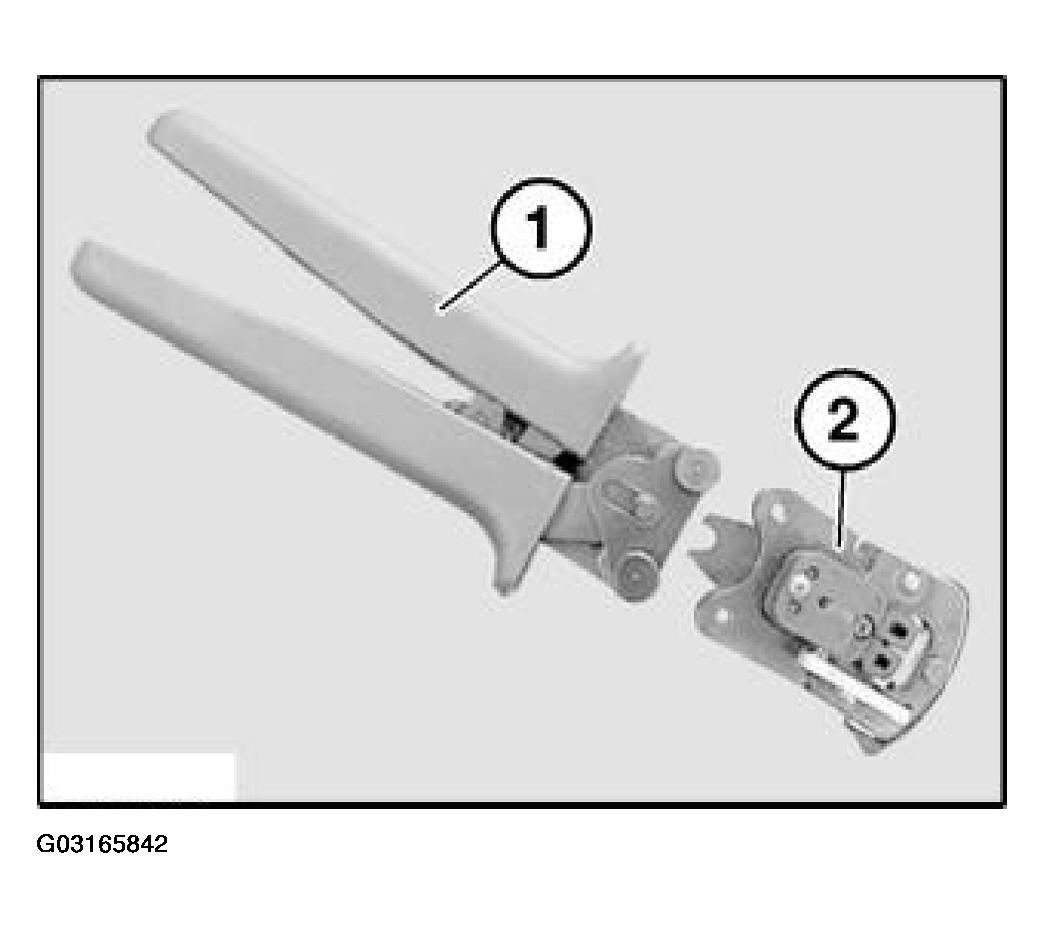

Fig 1: Identifying Special Tools (61 4 321 And 61 4 322)

Courtesy of BMW OF NORTH AMERICA, INC.
