84 11 520 Removing and installing/replacing transceiver (fixed mounting)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

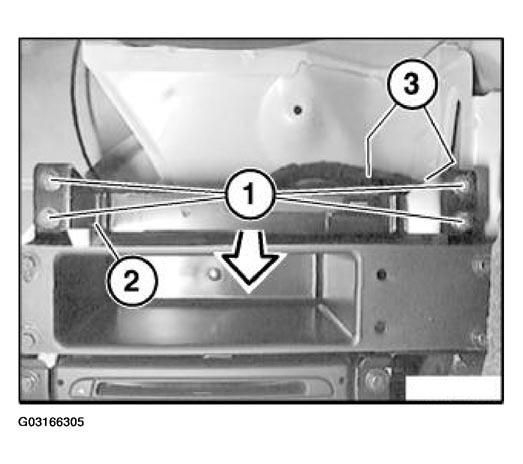

Detach left trunk wheel arch trim in rear area.

Loosen screws (1).

Pull out holder for transmit-receive unit (2) in direction of arrow and disconnect plug connections (3).

Fig 1: Replacing Transceiver (Fixed Mounting)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

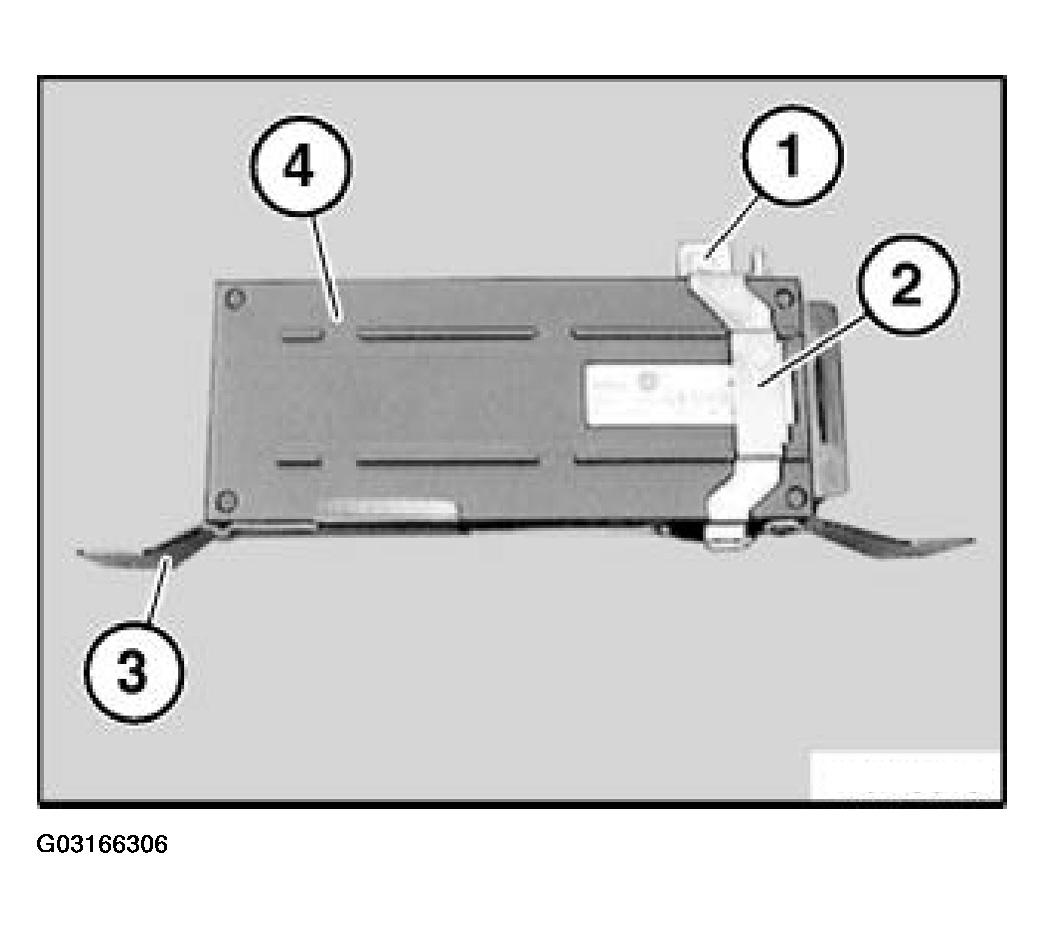

Release screw (1).

Unhook mounting bracket (2) and remove.

Remove transmit-receive unit (4) from holder for transmit-receive unit (3).

Fig 2: Removing Transmit-Receive Unit From Holder For Transmit-Receive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace sealing strip stuck to holder for transmit-receive unit (3).
