Seat Occupancy Sensor (SBE)
WARNING: This page does not describe the selected car, but rather 151 other vehicles, including the 2006 BMW X5, 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, and 2005 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
An occupancy sensor pad is incorporated into the front passenger's seat cushion. The pad is a foil contact sensor that is open when the seat is not occupied. When the seat cushion is pressed by the weight of a passenger, the sensor circuit produces a resistance that varies with the weight and/or movement.

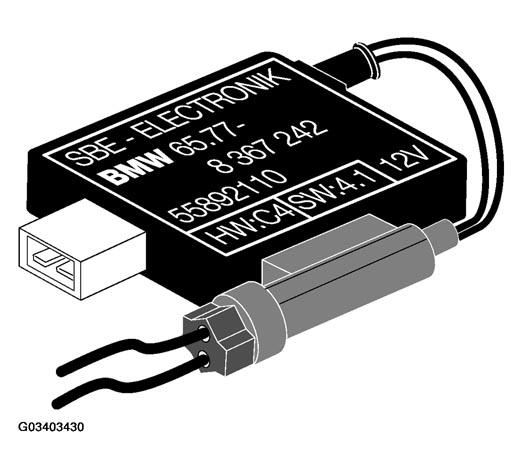

This variable resistance signal is input to the Seat Occupancy Module (SBE). The SBE is a small signal converter module, mounted under the passenger's seat. It converts the analog signal, from the seat pad into a square wave modulated output signal that is sent to the MRS control module. The MRS control module uses this signal for air bag triggering in the event of a collision.
