Driver's Front Air Bag
WARNING: This page does not describe the selected car, but rather 151 other vehicles, including the 2006 BMW X5, 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, and 2005 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

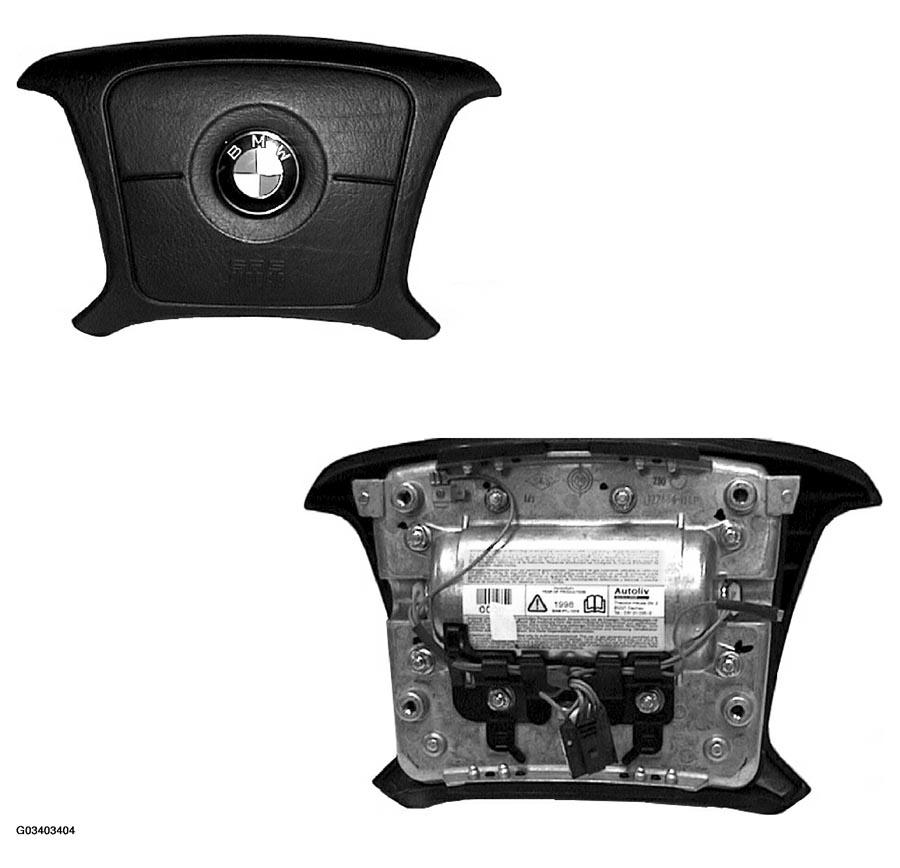

The driver's front airbag is a two stage bag similar to the passenger's front side bag, introduced on the 1999 model E38/E39s. The complete assembly is mounted beneath the cover in the center of the steering wheel as with previous airbags. The assembly contains the inert gas generator chamber and two ignition stages (ignitors).
The airbag consists of:
- Accumulator/gas generator.
- Two ignition capsules.
- Propellant gas - 13.5% Hydrogen/86.5% Oxygen.
