Front - Except M5 & 540i

WARNING: This page is about a different car, the 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Position steering gear to straight-ahead position. Alignment marks on case and steering shaft should align. See Fig 1.
Loosen lock nut on tie rod (black arrow). See Fig 2. Adjust wheel toe-in to specified value by rotating steering tie rod. See WHEEL ALIGNMENT SPECIFICATIONS .
Ensure that ball joint is not twisted. Tighten tie rod clamping nut to specification. See TORQUE SPECIFICATIONS .
On cars equipped with Electronic Damper Control, it is essential after wheel alignment to perform a "steering angle check/adjustment" with the BMW Diagnosis System.

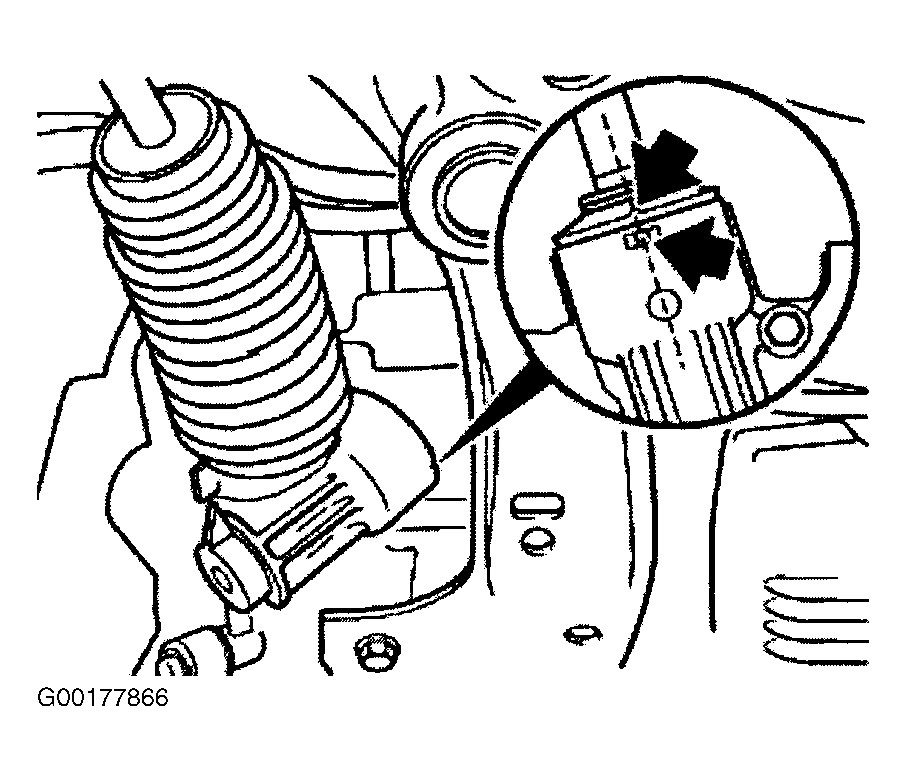

Fig 1: Locating Marking On Case

Courtesy of BMW OF NORTH AMERICA, INC.

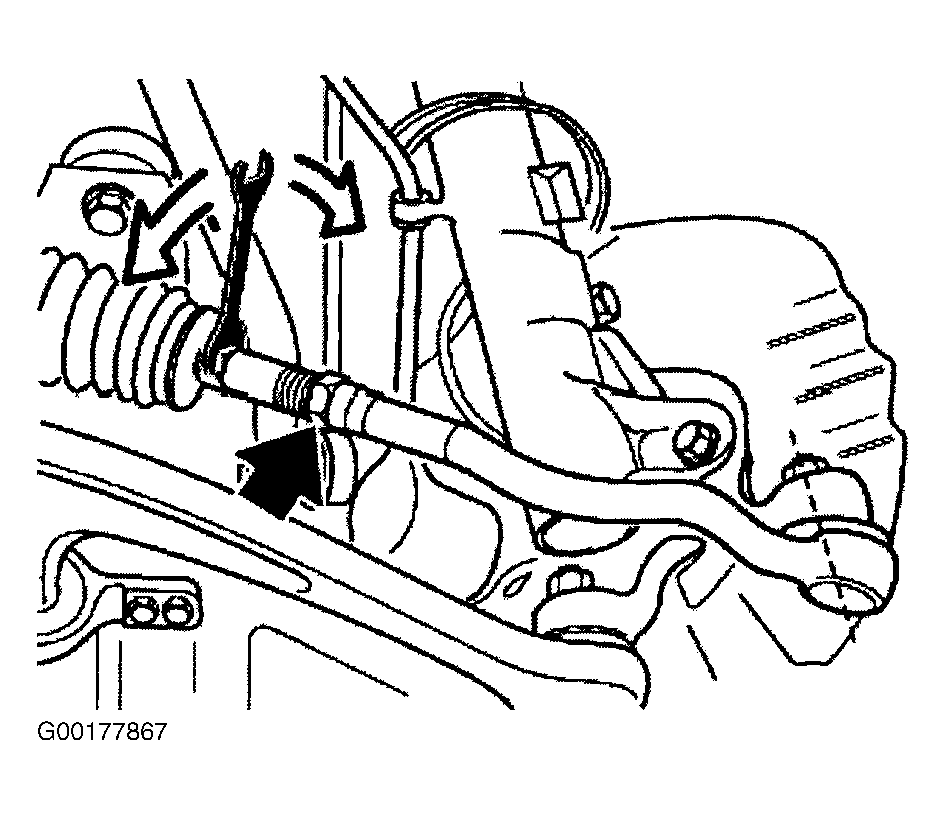

Fig 2: Adjusting Wheel Toe-In

Courtesy of BMW OF NORTH AMERICA, INC.
