31 00... Front Axle + Steering: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

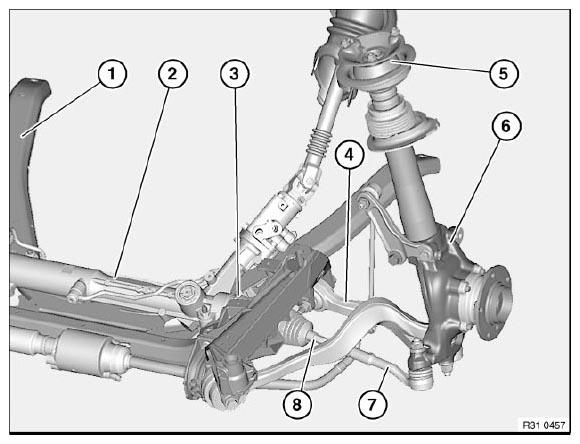

Fig 1: Identifying Front Axle And Steering Wheel Assembly Components

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check must be carried out after the following work:

Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Control arm to front axle carrier
- Support bearing to body (if centering pin is missing)
- Tie rod end to tie rod
Replacement of following parts:
1. Front axle carrier
2. Steering gear
3. Gaiter (if the tie rod end has to be screwed off)
4. Control arm
5. Support bearing (if centering pin is missing)
6. Swivel bearing
7. Tie rod end
8. Tie rod
