31 33 001 Replacing Front Left Or Right Spring Strut Support Bearing (M5, M6)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Procedure is described in 31 31 031 REPLACING FRONT LEFT OR RIGHT SPRING STRUT (M Models) .

Replacement: If necessary, twist out centering pin (1).

NOTE: If a support bearing (2) was fitted without centering pin (1), the centering pin (1) of the new support bearing (2) must be twisted out.

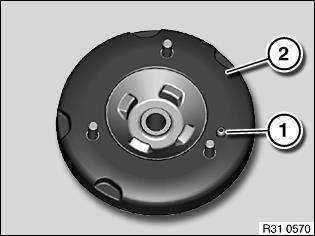

Fig 1: Centering Pin (1) Of The New Support Bearing (2) Must Be Twisted Out

Courtesy of BMW OF NORTH AMERICA, INC.
