84 11 612 Removing and Installing/Replacing Eject Box (In Rear Center Armrest)

WARNING: This page is about a different car, the 2008 BMW 760Li, 2007 BMW 760Li, and 2006 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)! See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)

Remove storage tray/CD box.

Snap out trim (1) in upward direction and disconnect plug connections underneath.

Lift out mat insert (2).

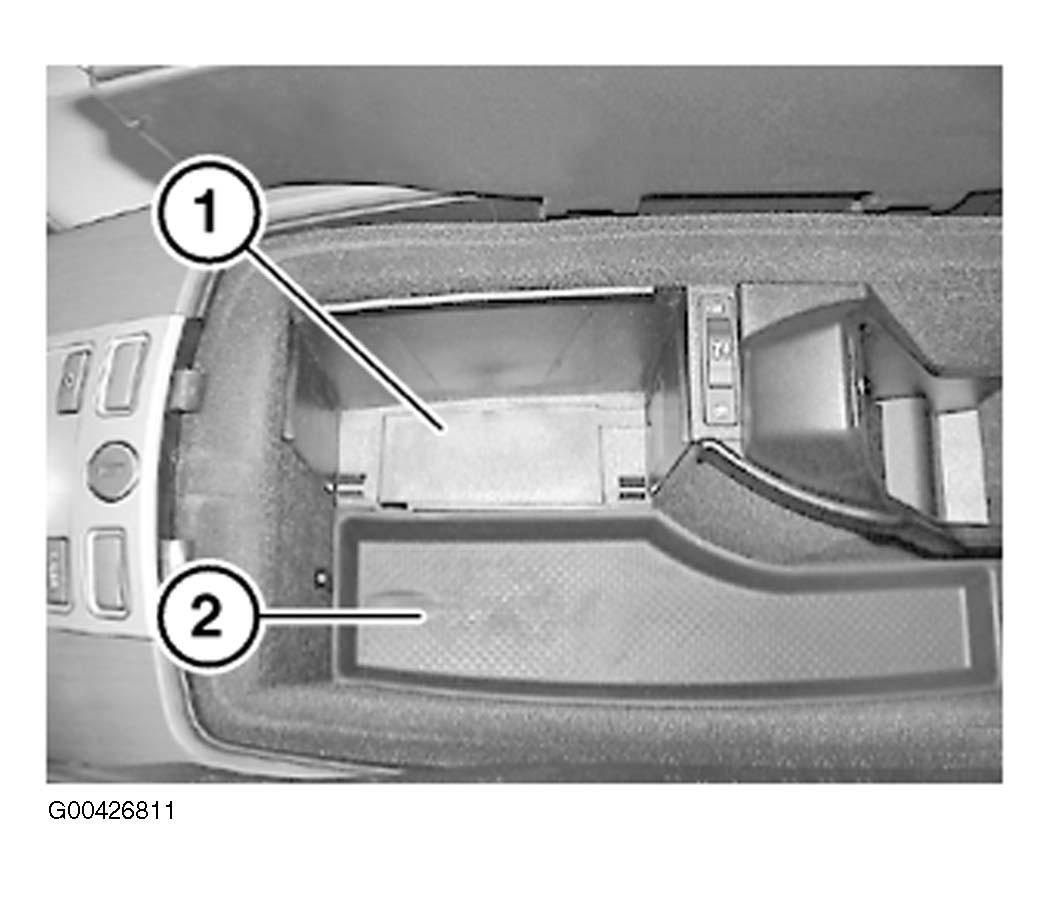

Fig 1: Snap Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out trim (1) with special tool 00 9 317.

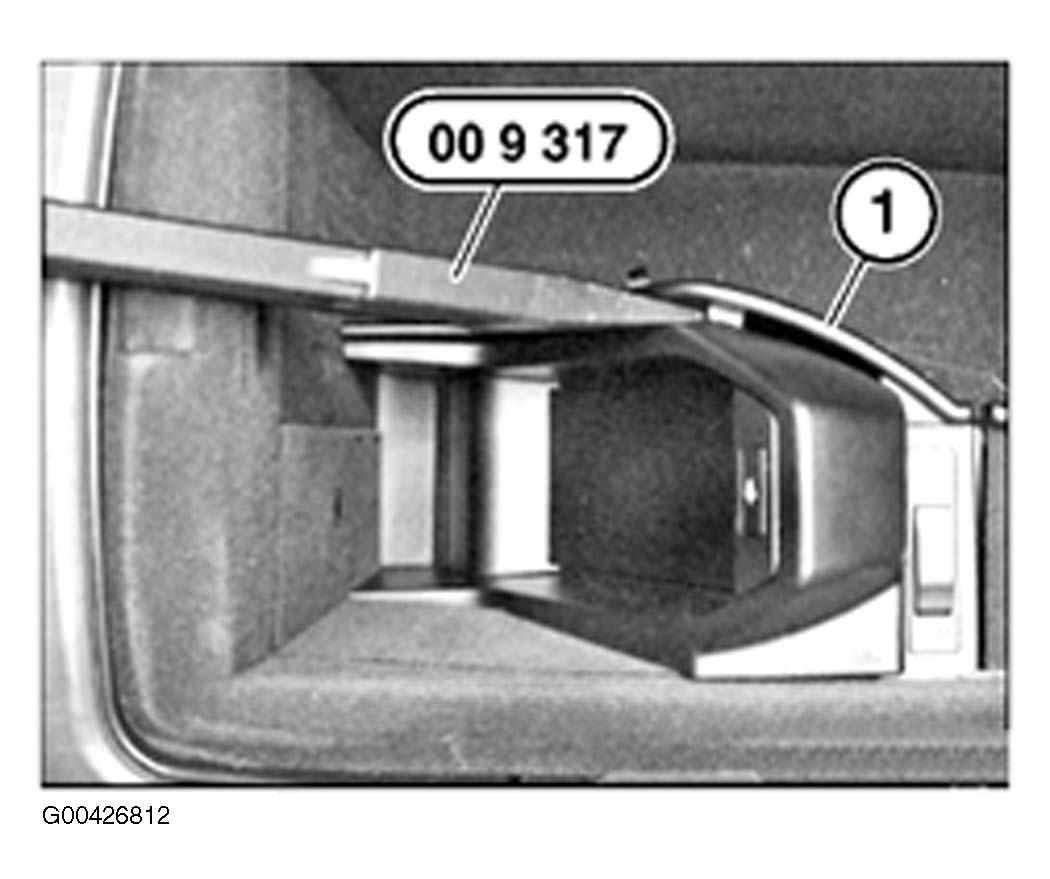

Fig 2: Identifying Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Lever eject box (1) with special tool 00 9 317 out of fixture and feed out associated wiring harness.

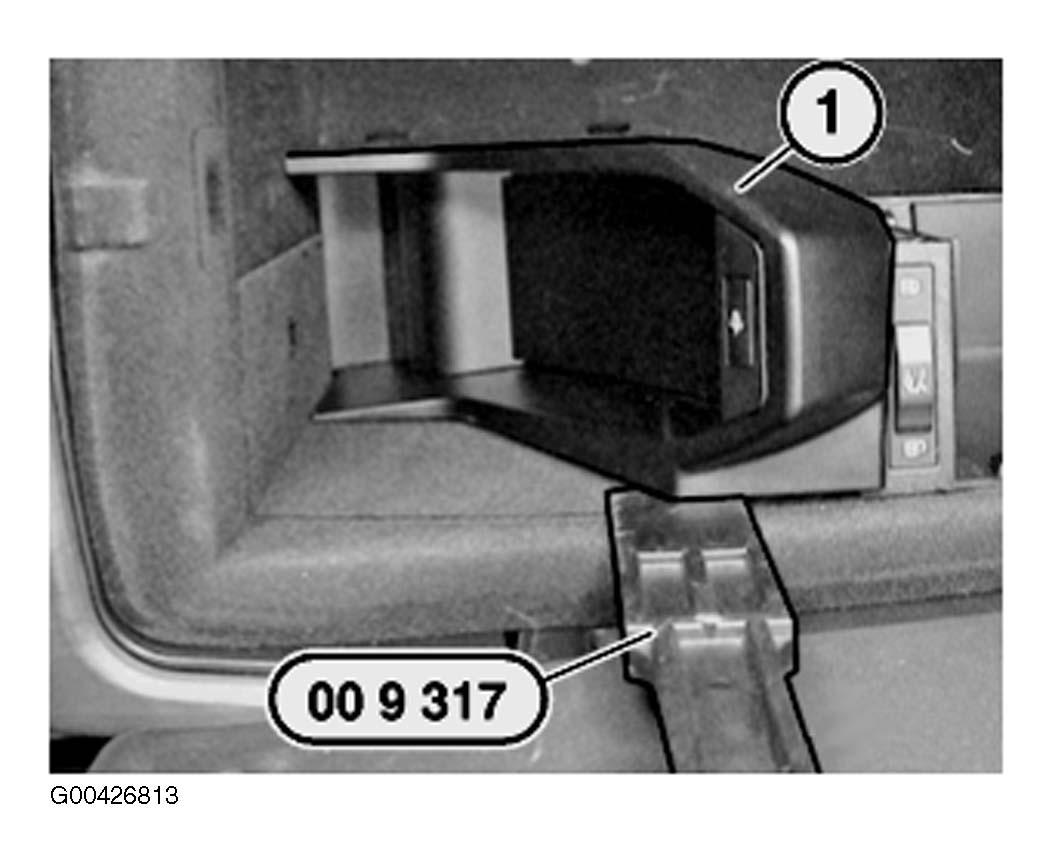

Fig 3: Identifying Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
