12 31... Replacing alternator belt pulley

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

PROCEDURE WITH SPECIAL TOOL 12 7 121

Illustrations show N42:

If fitted, remove cover cap from belt pulley.

Depending on alternator type, slacken screw with:

Torx socket wrench
Slacken multi-tooth socket wrench (special tool 12 7 122 ).

Grip freewheel with special tool 12 7 121 .

Installation:

Tightening torque 12 31 8AZ .

Remove alternator drive belt.

Release screw and if necessary remove freewheel.

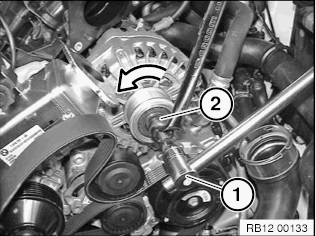

Fig 1: Identifying Special Tool (12 7 121) And (12 7 122)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Special Tool (12 7 123)

PROCEDURE WITH SPECIAL TOOL 12 7 123

Depending on the alternator version, hold down alternator axis with: Torx key and Hold inner multi-wrench tool (special tool 12 7 122).

Release freewheel with special tool 12 7 123 and a ring spanner and remove. Installation note: Tightening torque 12 31 8AZ .
