61 11... Installing repair cable for reversing camera
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.
Remove trim panels.

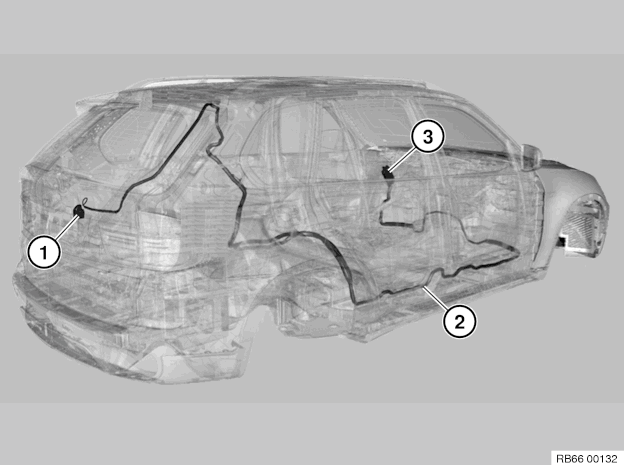

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.
Lay any repair cable overlength under carpet.
After successful completion of function check, detach start and end of faulty cable at first mounting point.
