24 34... Notes on mechatronics (GA8HP45Z, GA8HP70Z) (X6 35i, 50i 2011-13)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
IMPORTANT:
After completing work:
- Load specific data status with the BMW diagnosis system
- Check TRANSMISSION OIL LEVEL
- Use only the approved transmission oil:
ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426
* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397
Failure to comply with this requirement will result in serious damage to the automatic transmission!
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.

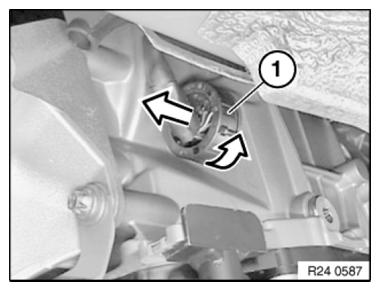

Unscrew connector (1) and disconnect.
Insert special tool 24 2 390 (cap) in sealing sleeve (1).
