52 14 ... Removing and installing/replacing guide for front left or right head restraint

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) .

Pull backrest cover (1) in direction of arrow over metal lugs (2) and detach.

If necessary, detach backrest cover on both sides from backrest frame.

Fig 1: Locating Metal Lugs On Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) and remove guide (2) towards top.

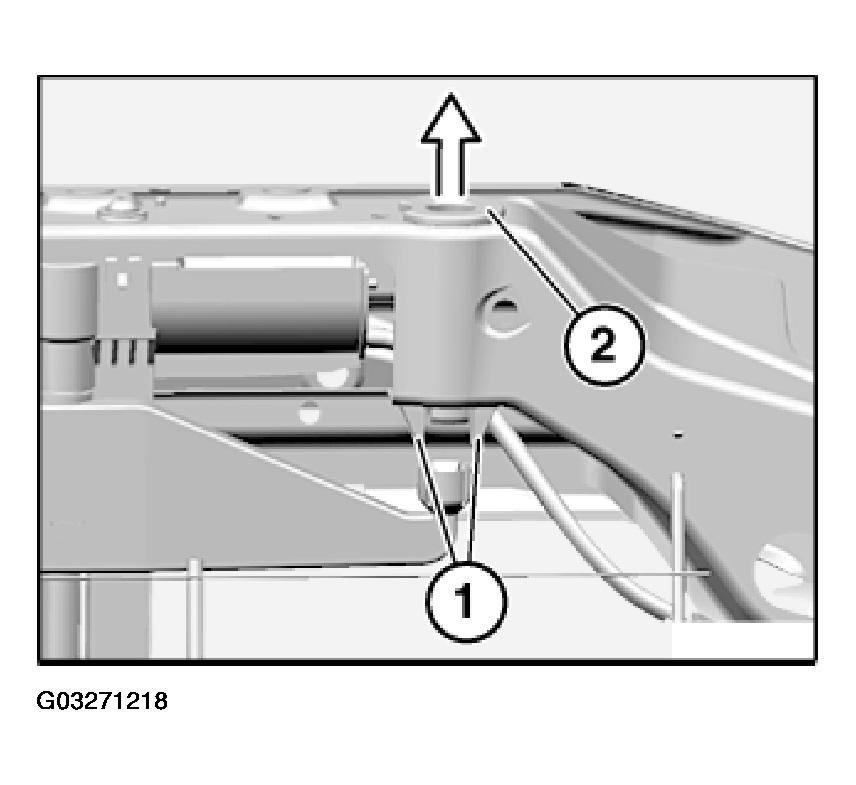

Fig 2: Removing Head Restraint Guide

Courtesy of BMW OF NORTH AMERICA, INC.
