52 16 ... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Installation:

Insert screws (1) with Loctite.

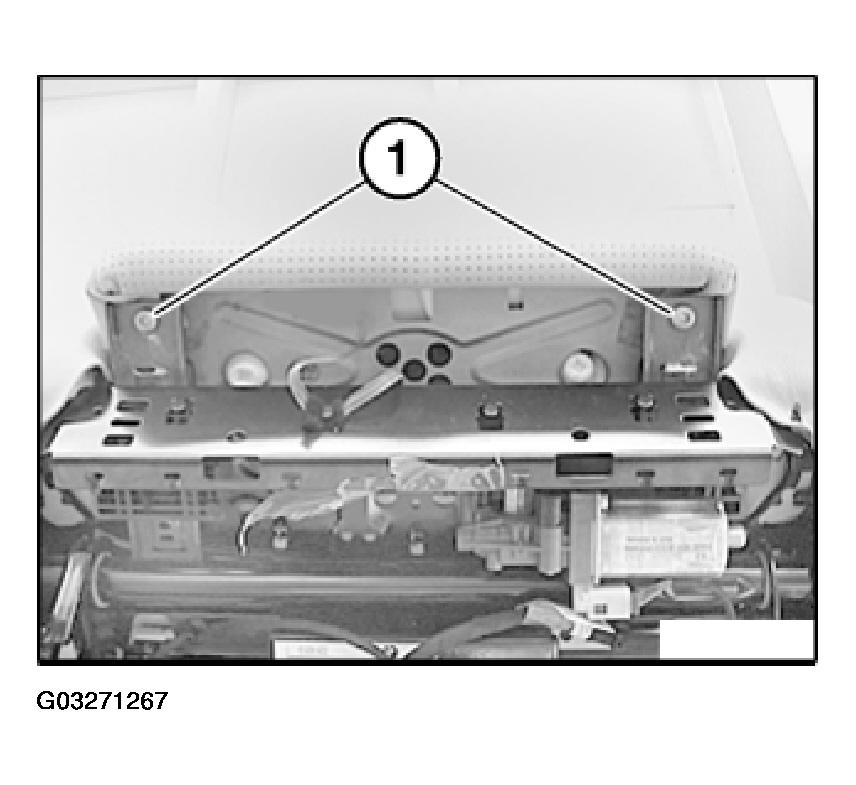

Fig 1: Locating Front Seat Thigh Support Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

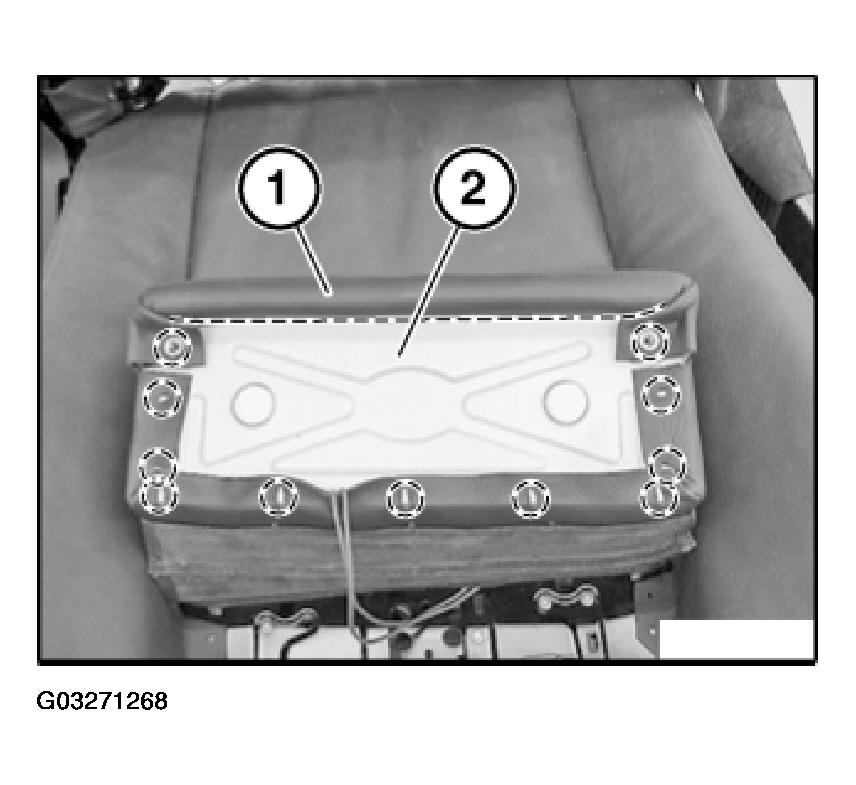

Fig 2: Identifying Seat Cover Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation:

Ensure correct cable routing.

Remove padding from cover.

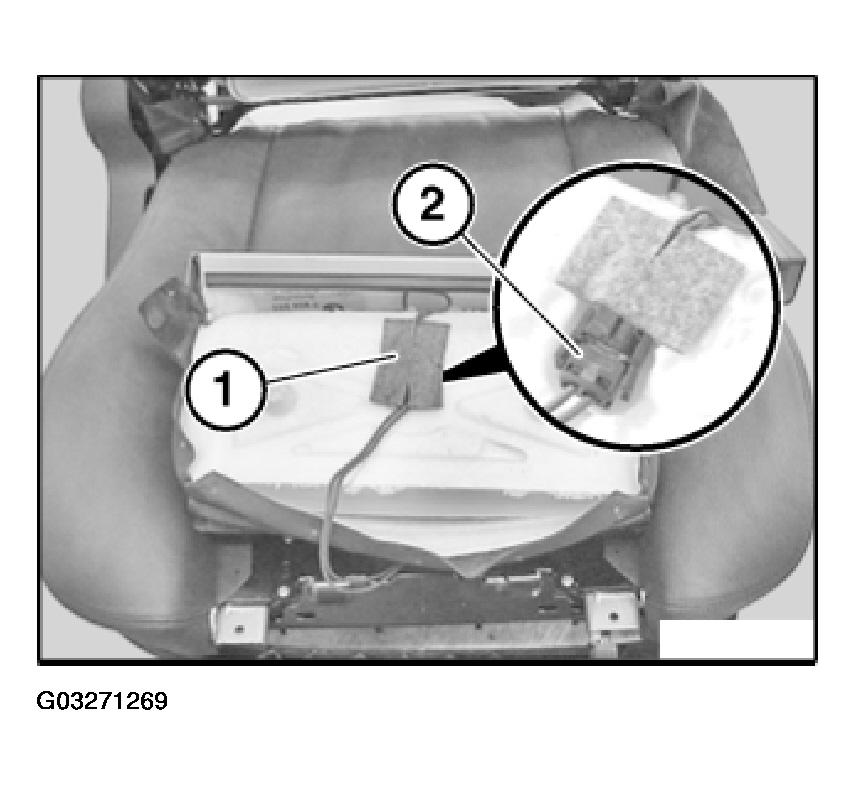

Fig 3: View Of Plug Connection For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
