52 26 ... Removing and installing/replacing ski bag (through-loading) and frame

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Removing ski bag:

Fold back center armrest.
Unlock handle strip towards top.
Remove ski bag (1) towards front.

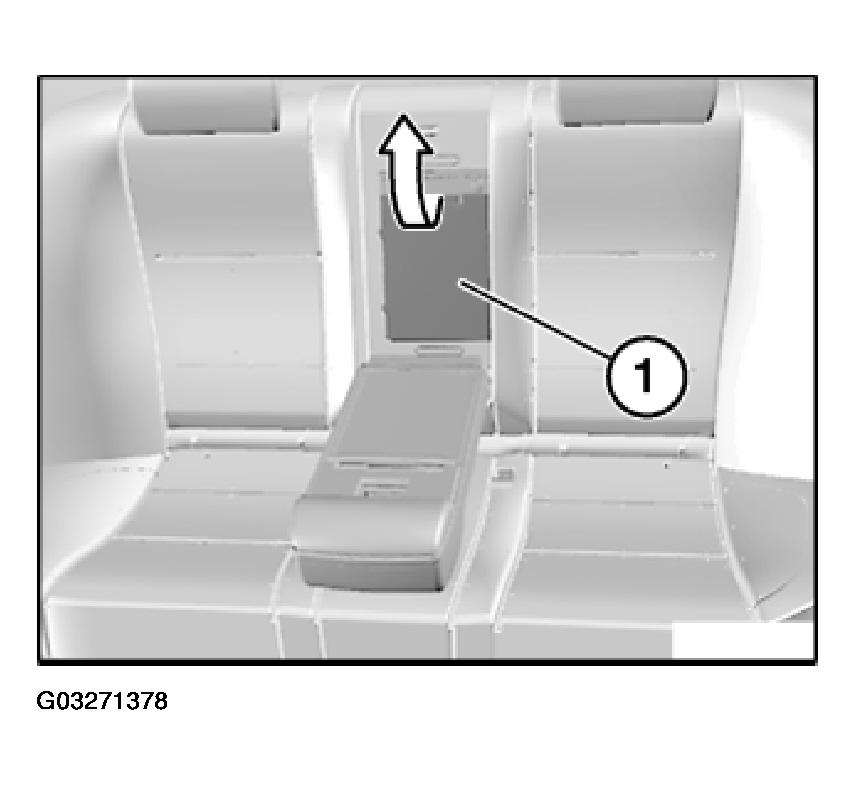

Fig 1: View Of Ski Bag
Courtesy of BMW OF NORTH AMERICA, INC.

Removing frame for ski bag:

Remove ski bag.
Remove screw cover, release screws (1).
Tightening torque, refer to 52 26 6AZ in SEATS - TIGHTENING TORQUES - 545I (4.4L) E60/N62 .
Fold backrest forwards slightly.
Feed in special tool 00 9 317 in area (2) between trim and frame and unclip frame towards rear.
Remove frame towards rear bottom.

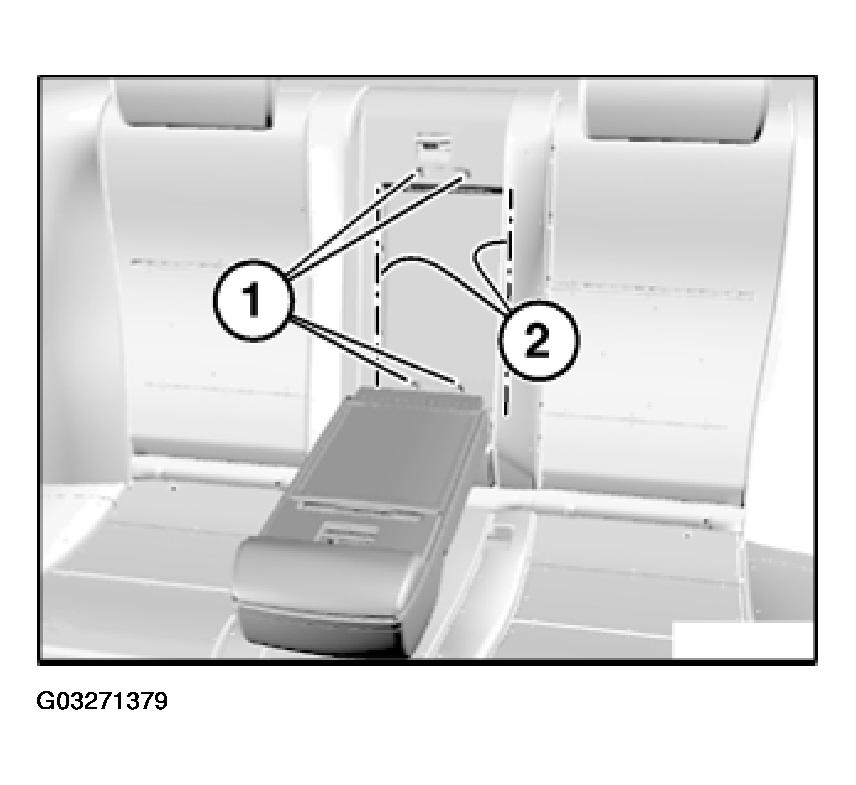

Fig 2: Removing Frame For Ski Bag
Courtesy of BMW OF NORTH AMERICA, INC.
