61 35 076 Removing and installing/replacing control unit for backrest width adjustment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

52 0 050

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove switch combination for seat adjustment. Refer to 61 31 203 REPLACING SEAT ADJUSTMENT SWITCH COMBINATION (FULLY ELECTRIC FRONT SEAT) and 61 31 204 REPLACING SEAT ADJUSTMENT SWITCH COMBINATION (SEMI-ELECTRIC FRONT SEAT) .

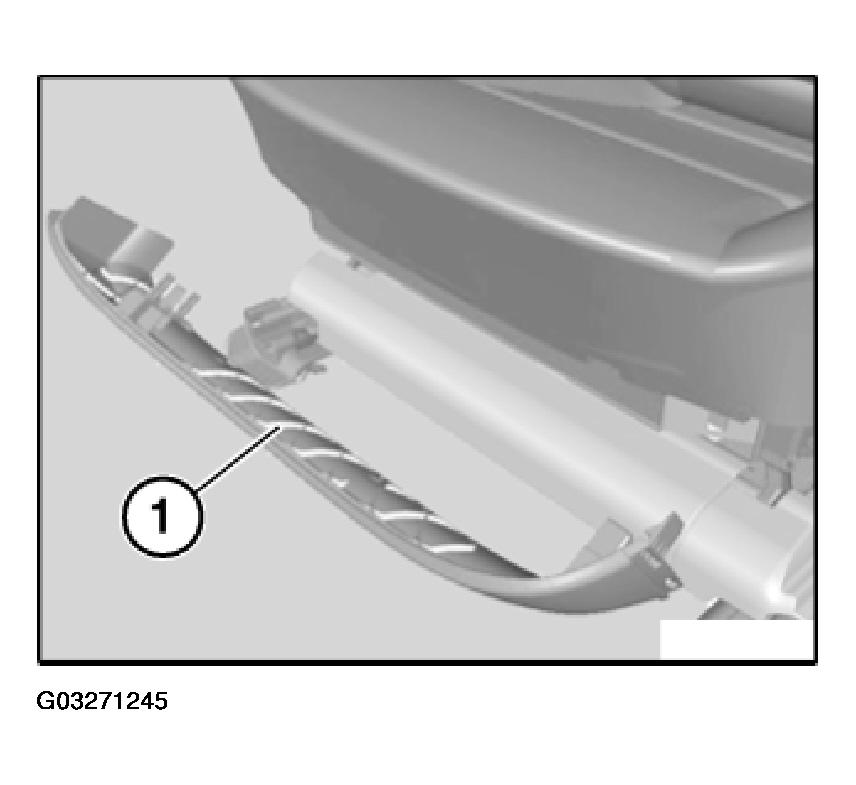

Unclip cover (1) on front seat.

Fig 1: Removing Cover On Front Seat

G03271245

Courtesy of BMW OF NORTH AMERICA, INC.

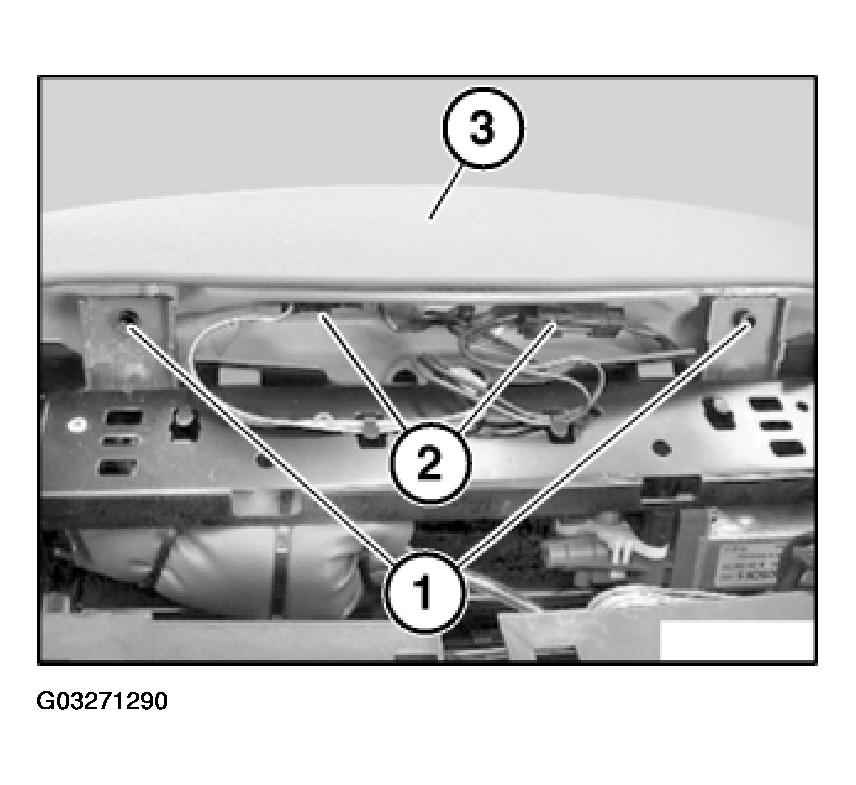

Release screws (1) on thigh support.

Disconnect plug connection (2).

Remove thigh support (3) towards top.

Installation:

Insert screws (1) with Loctite.

Fig 2: Locating Thigh Support Retaining Screws

G03271290

Courtesy of BMW OF NORTH AMERICA, INC.

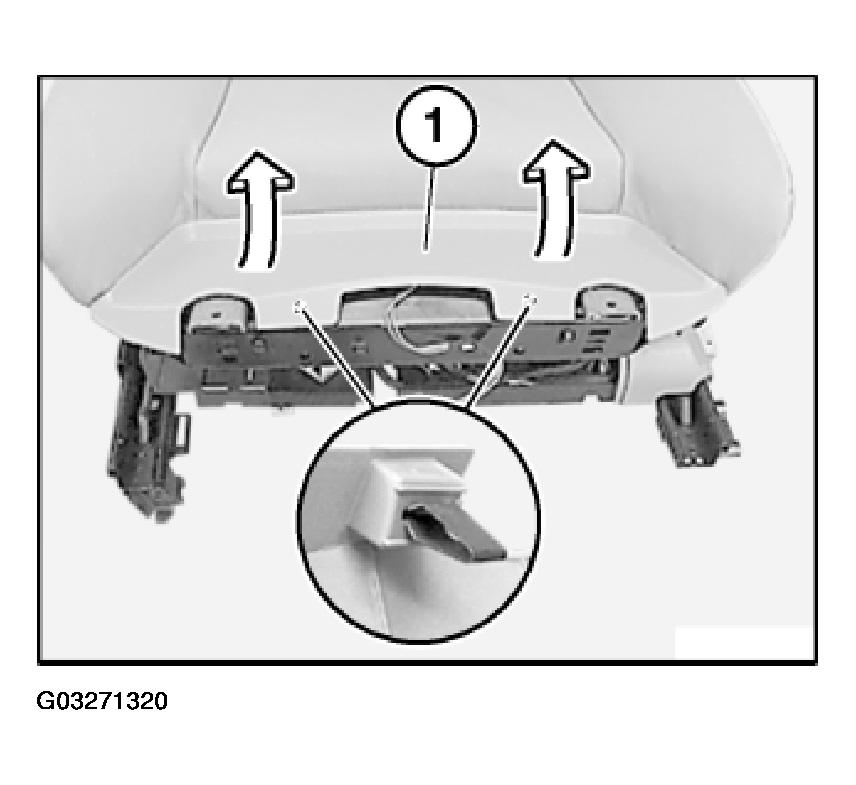

Unclip trim (1) for thigh support carrier.

Fig 3: Removing Trim For Thigh Support Carrier

G03271320

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat cover (1).

Tilt back seat cover (1) with padding towards middle of vehicle.

Fig 4: Locating Seat Cover Retainers

G00432859

Courtesy of BMW OF NORTH AMERICA, INC.

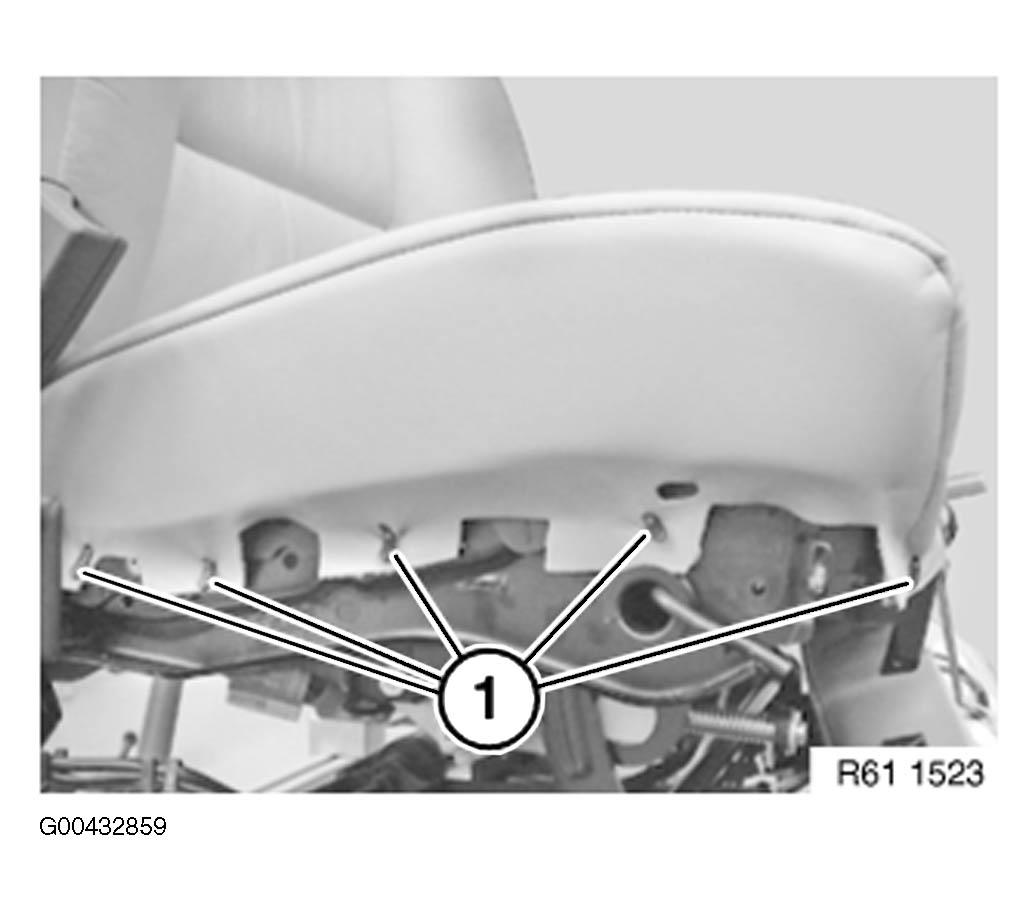

Loosen retainers (1).

Tilt back thigh support (2) towards rear.

Remove all remnants of clips from seat cover and seat mechanism.

Installation:

Bend new retainers closed with pliers (52 0 050).

Fig 5: View Of Seat Cover Clips

G00432860

Courtesy of BMW OF NORTH AMERICA, INC.

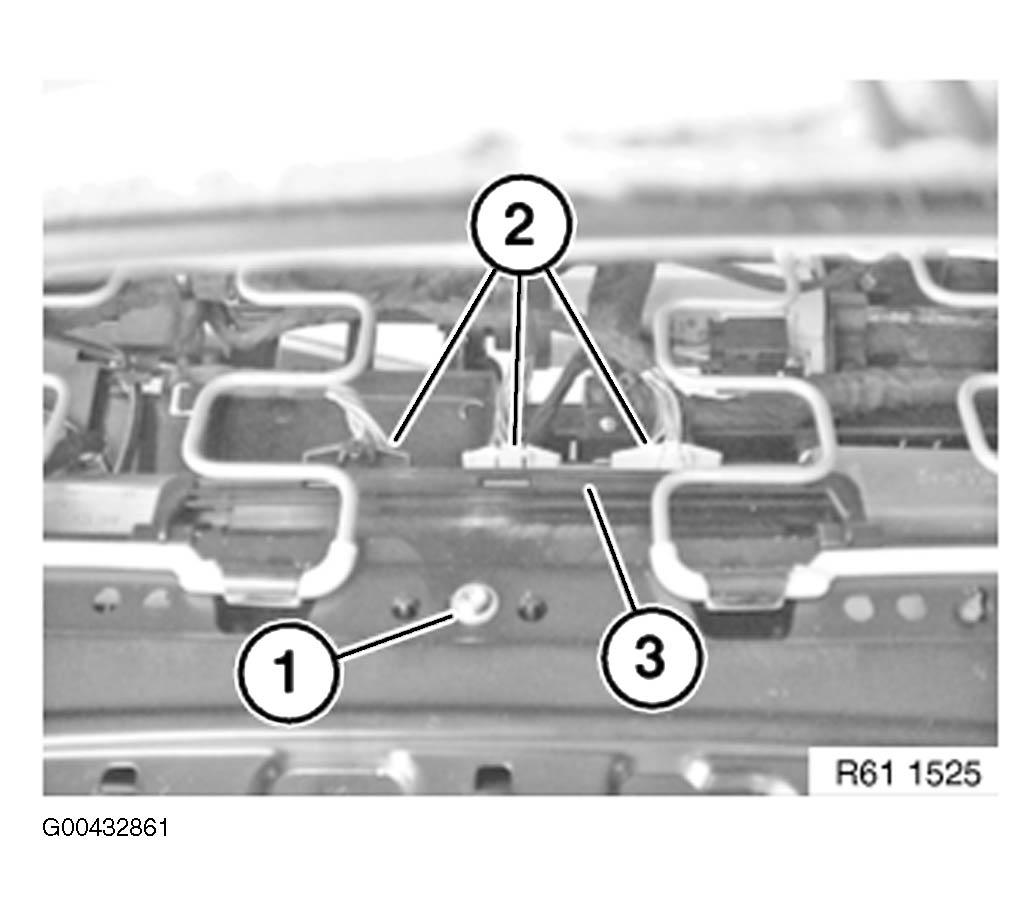

Release screw (1) under tilted-up seat padding.

Unlock plug connections (2) and disconnect.

Remove control unit for backrest width adjustment (3) towards bottom.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .

Fig 6: Identifying Backrest Width Adjustment Control

G00432861
