61 35 125 Removing and installing/replacing body module

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

E60: Remove luggage compartment trim on side panel on right.
Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove trim for instrument panel, bottom left. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .
Detach airbag control unit with gateway module. Refer to 65 77 680 REMOVING AND INSTALLING (REPLACING) AIRBAG CONTROL UNIT WITH GATEWAY MODULE .

NOTE: Open glovebox.

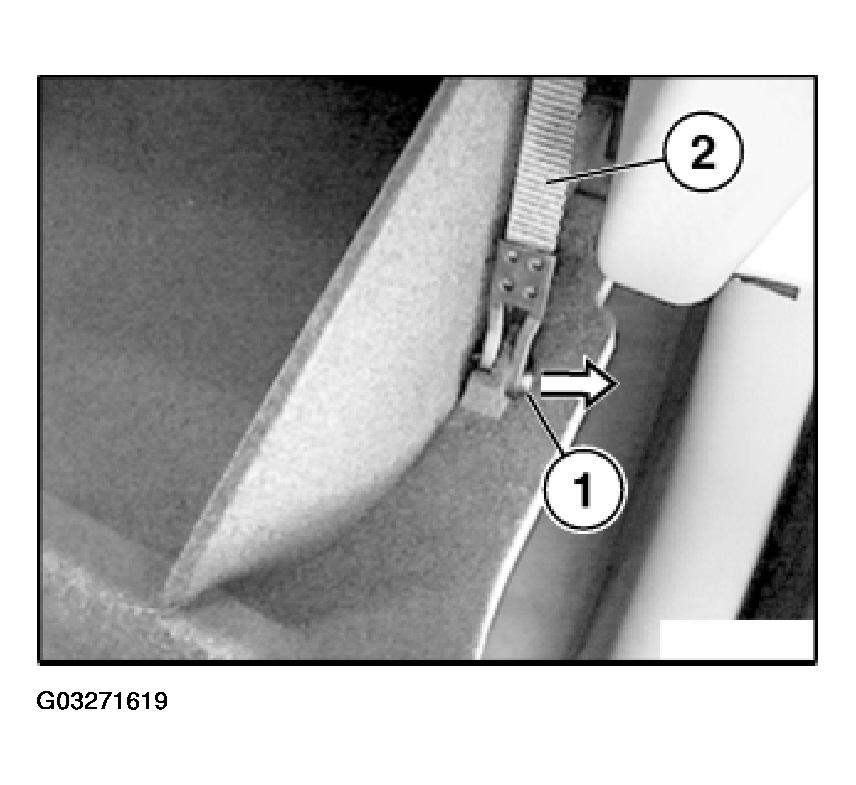

Unclip pin (1) from retaining strap (2).

Fig 1: Removing Pin From Retaining Strap

G03271619

Courtesy of BMW OF NORTH AMERICA, INC.

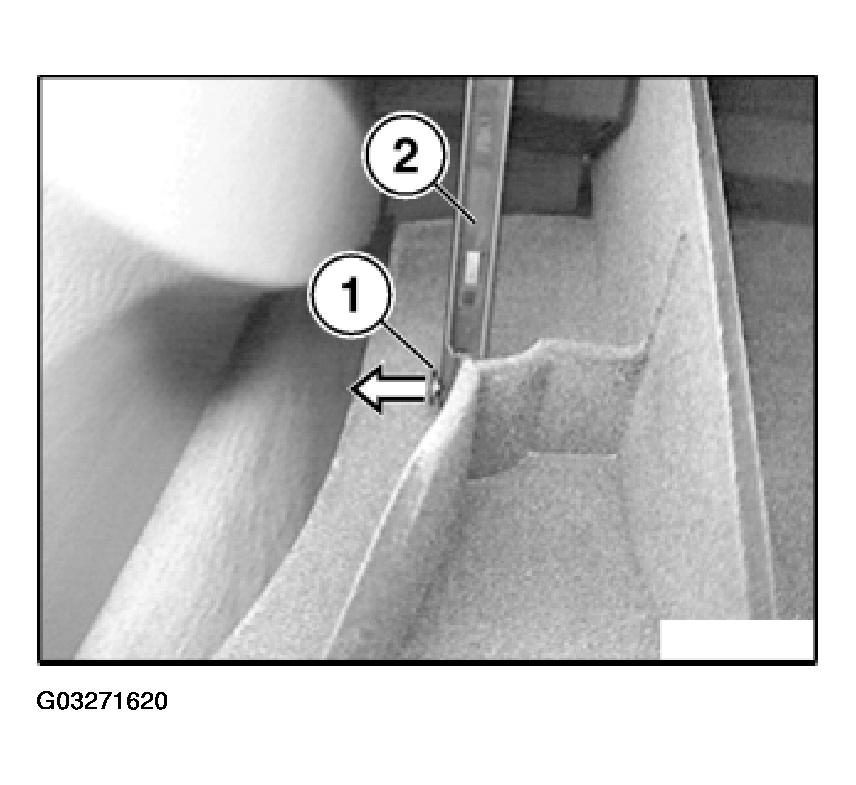

Unclip pin (1) from shock absorber (2).

Fig 2: Removing Pin From Shock Absorber

G03271620

Courtesy of BMW OF NORTH AMERICA, INC.

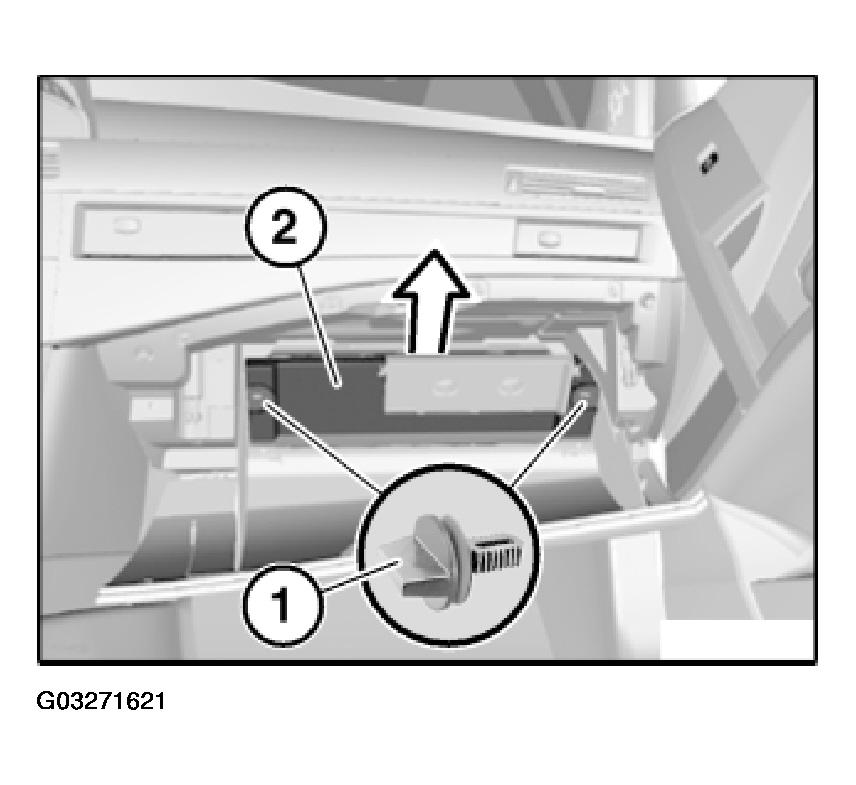

Open rotary clips (1) and remove.

Remove cover (2) in direction of arrow.

Fig 3: Locating Rotary Clips

G03271621

Courtesy of BMW OF NORTH AMERICA, INC.

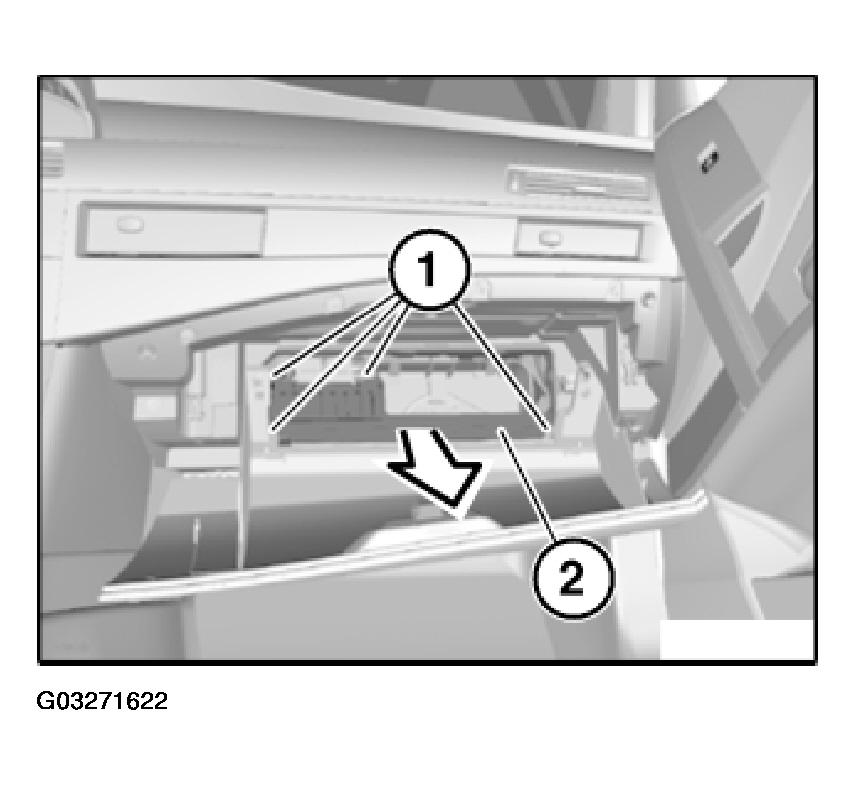

Release screws (1).

Pull fuse holder (2) back slightly.

Fig 4: Identifying Fuse Holder

G03271622

Courtesy of BMW OF NORTH AMERICA, INC.

Detach airbag control unit with gateway module. Refer to 65 77 680 REMOVING AND INSTALLING (REPLACING) AIRBAG CONTROL UNIT WITH GATEWAY MODULE .

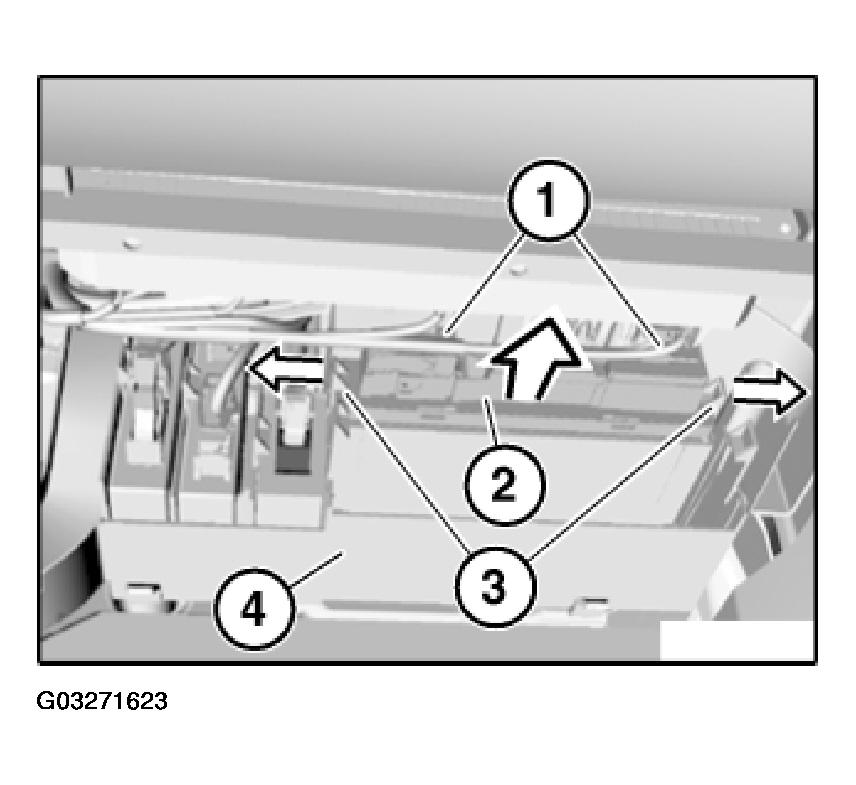

Unlock plug connections (1) and disconnect.

Unlock catches (3) in direction of arrow and remove body module (2) from equipment carrier (4).

Fig 5: Removing Body Module From Equipment Carrier

G03271623

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
