61 35 285 Removing and installing (replacing) light module

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unfasten plug connection (4) and disconnect.

Unlock catch (1) and feed out/remove light module (2) in direction of arrow.

Installation:

Make sure light module (2) is correctly seated in mounting (3) and catch (1).

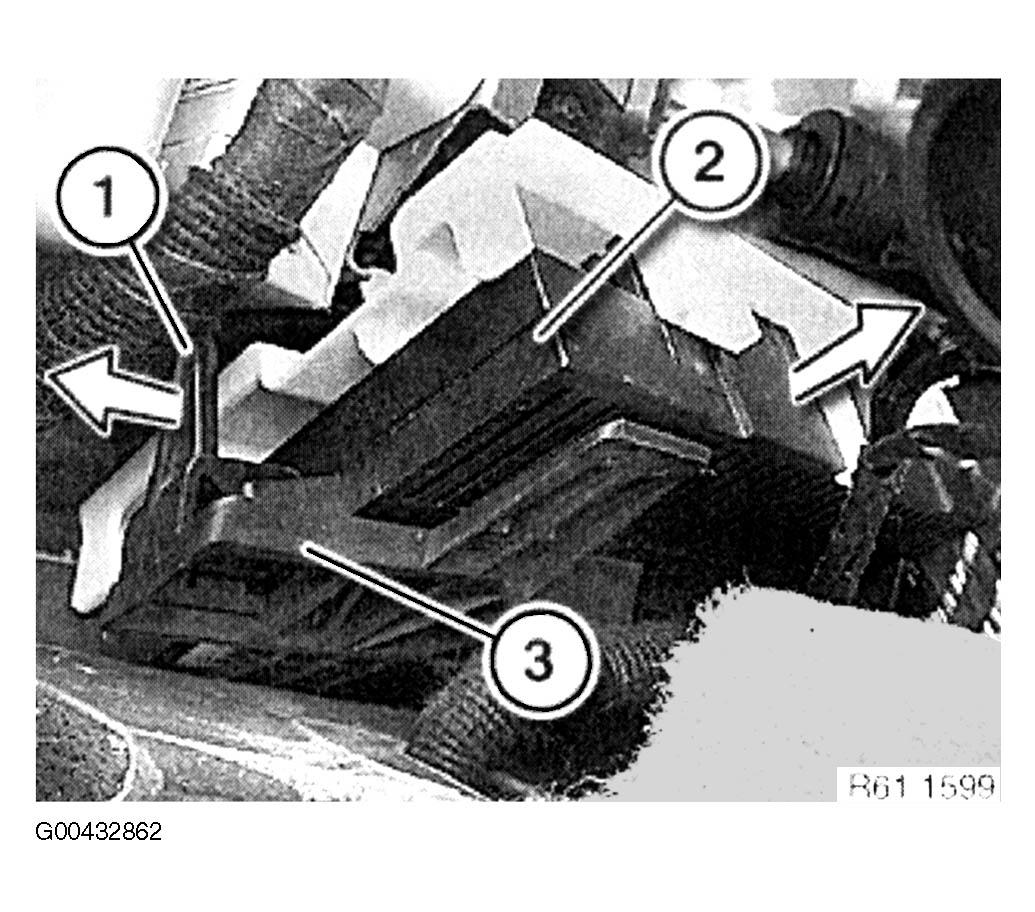

Fig 1: Removing Light Module

G00432862

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unlock catch (1) and remove cover (2) from light module (3).

Installation:

Make sure cover (2) is correctly seated on light module (3).

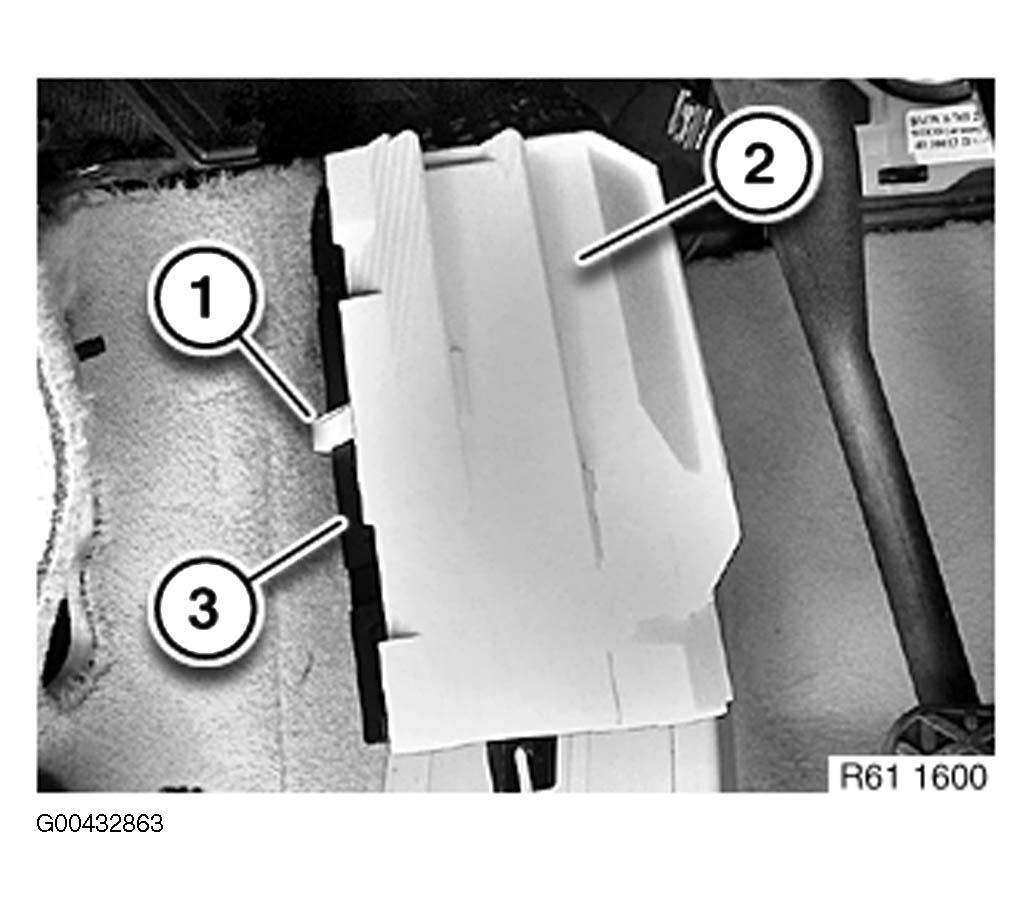

Fig 2: Identifying Catch In Light Module Cover

G00432863

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

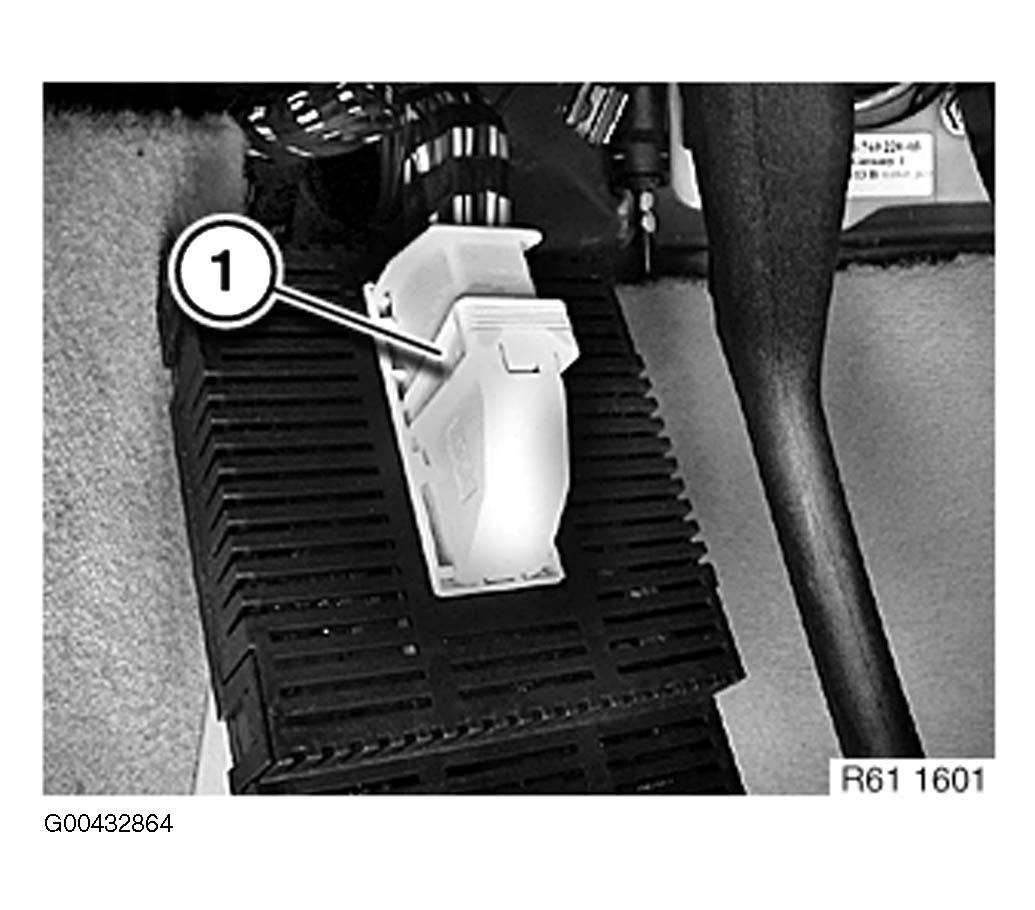

Fig 3: Locating Light Module Plug Connection

G00432864

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
