61 13 ... Cutting off, stripping insulation and cutting optical fibres to length

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For Special Tool identification, see GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 5 - SERIES (E60) .

Special Tools Required:

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

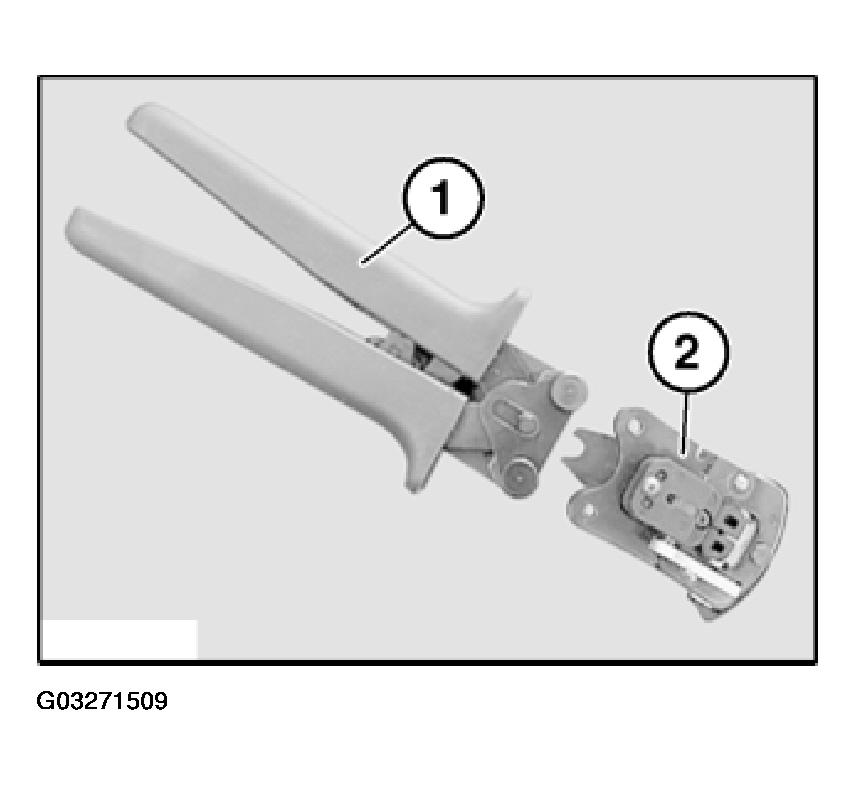

Fig 1: View Of Pliers With Crimping Head
G03271509Courtesy of BMW OF NORTH AMERICA, INC.

Cutting Optical Fibre:

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

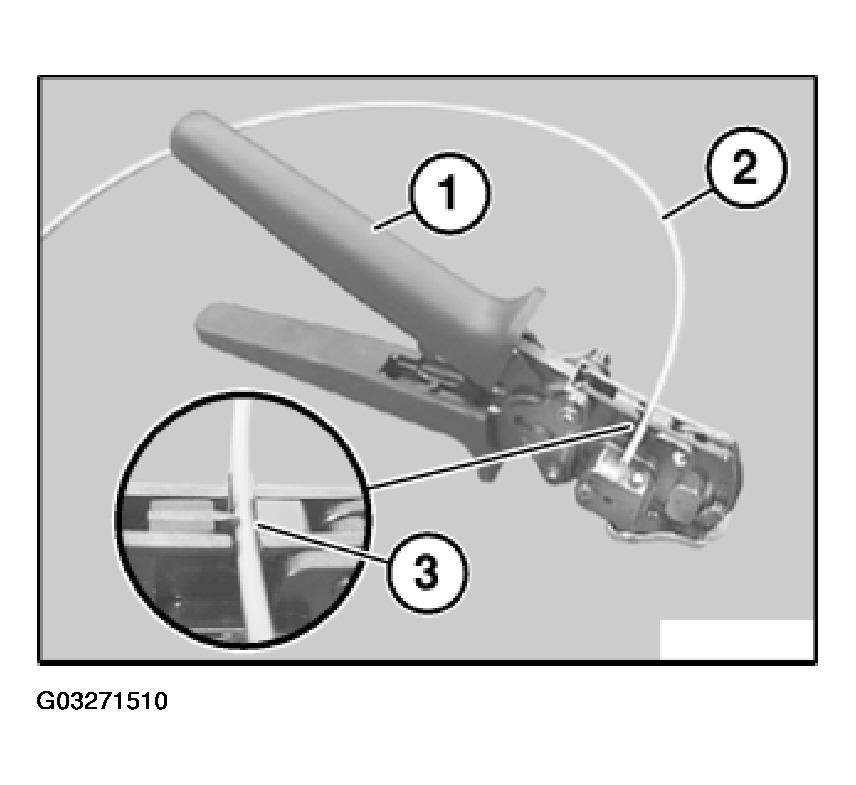

Fig 2: Inserting Optical Fibre In Cutting Device
G03271510Courtesy of BMW OF NORTH AMERICA, INC.

Stripping Insulation From Optical Fibre:

Open pliers (1).

Open lever (2) in direction of arrows.

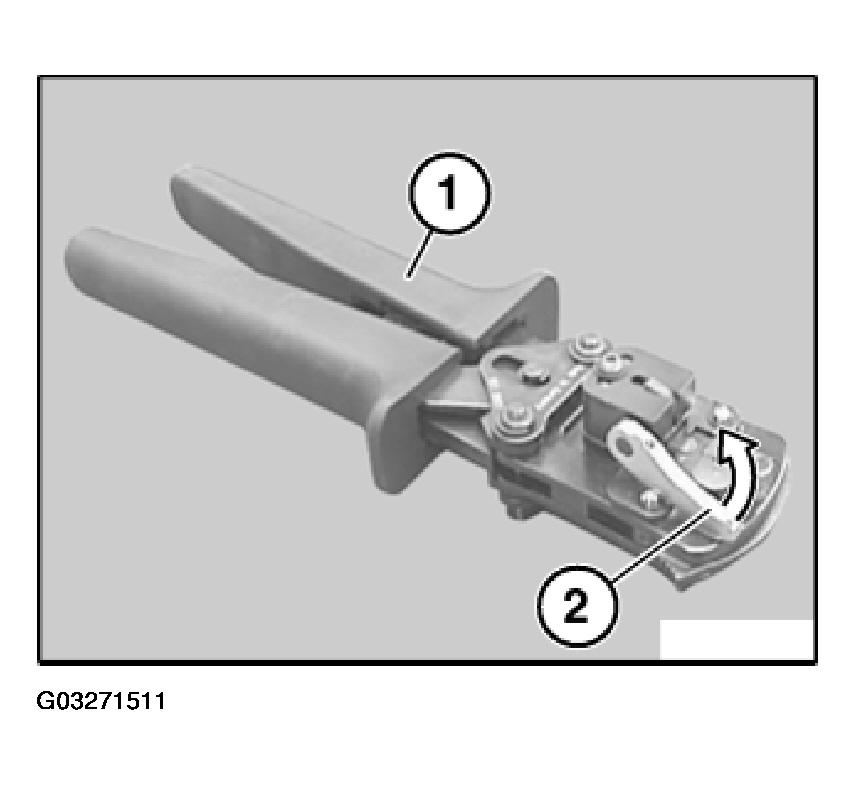

Fig 3: Aligning Opening Lever
G03271511Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

Cutting Optical Fibre To Length:

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

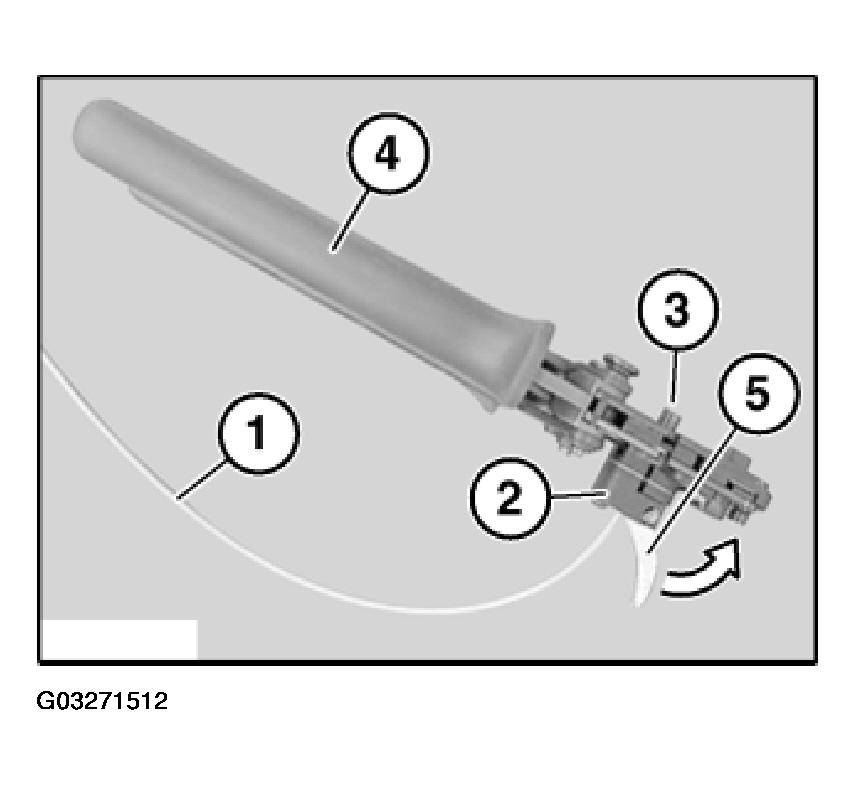

Fig 4: Installing Optical Fibre Into Stripping Device
G03271512Courtesy of BMW OF NORTH AMERICA, INC.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

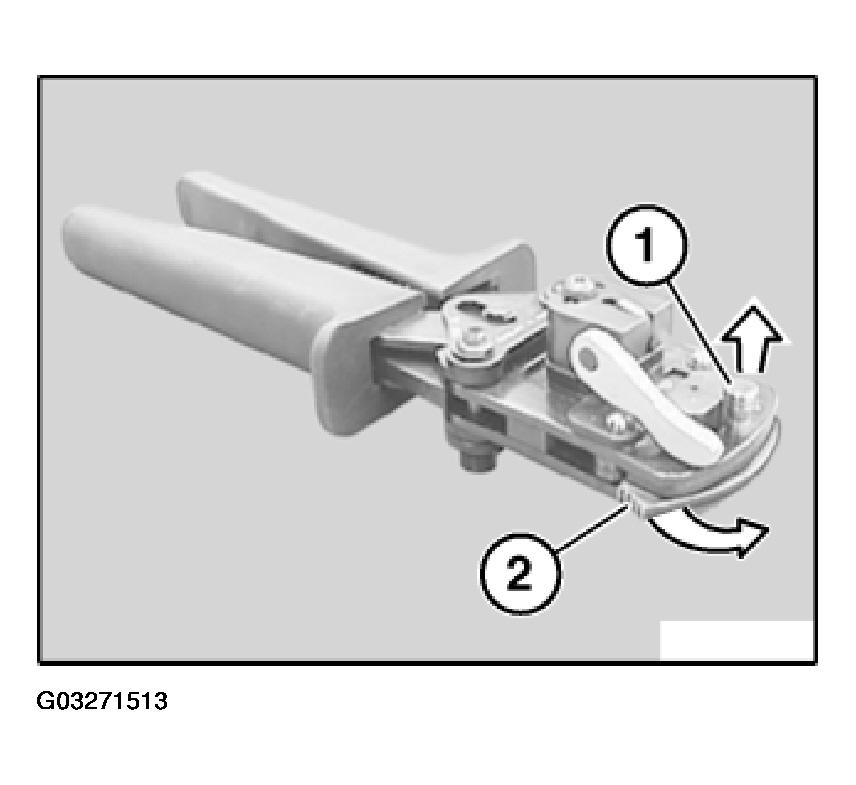

Fig 5: Aligning Blade Retaining Link
G03271513Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

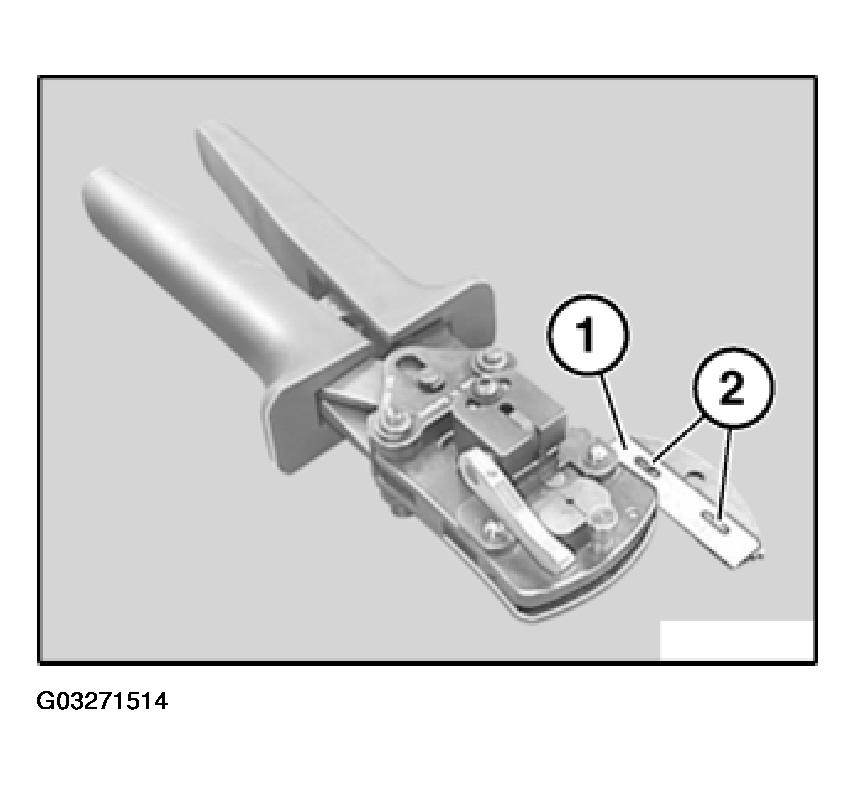

Fig 6: Identifying Blade Locating Points
G03271514Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

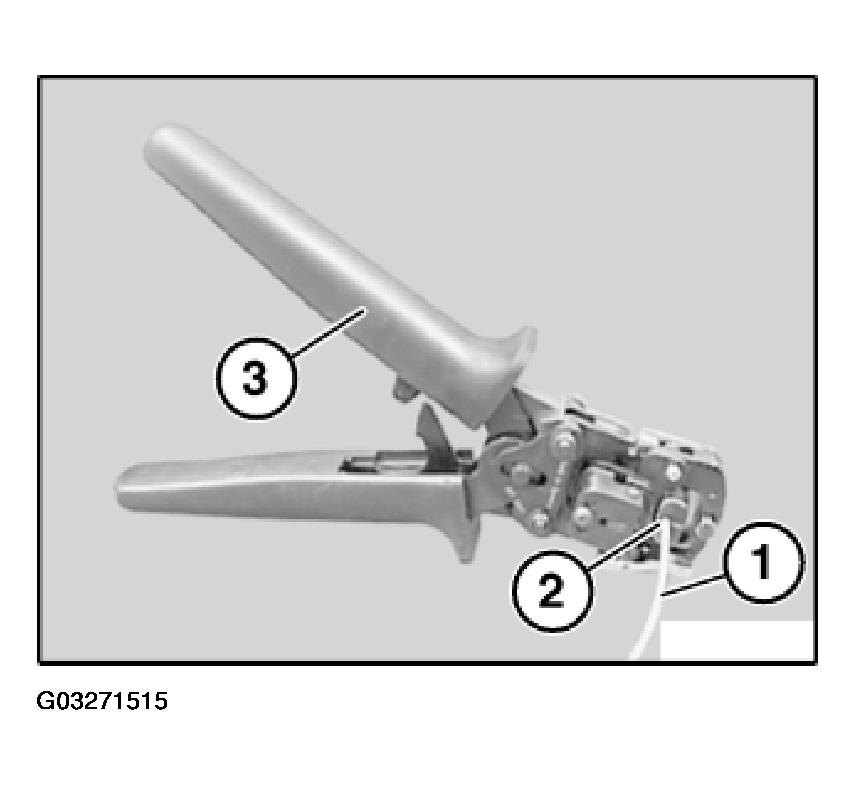

Fig 7: View Of Optical Fibre In Cutting Device
G03271515Courtesy of BMW OF NORTH AMERICA, INC.
