61 31 023 Removing and installing/replacing Start/Stop switch
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .
Special Tools Required:
- 00 9 341

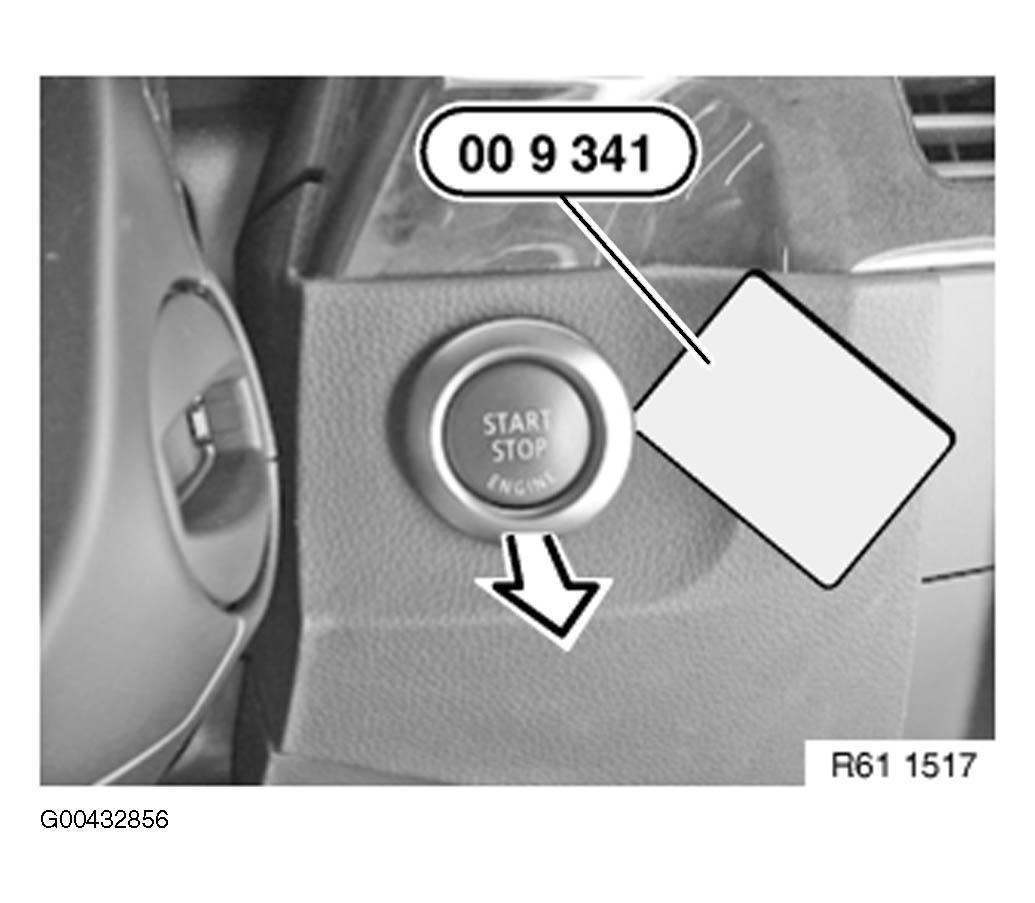

Attach special tool 00 9 341 as illustrated.
Unclip Start/Stop switch with associated ribbon cable in direction of arrow.
IMPORTANT:
Carefully unlock and disconnect associated plug connection for ribbon cable. Replace the ribbon cable if damaged.
Remove Start/Stop switch.
