61 31 195 Removing and installing (replacing) front controller

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove knob for controller. Refer to 61 31 192 REPLACING KNOB FOR CONTROLLER .
Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

Release screws (1).

Remove controller (2) in direction of arrow from storage compartment (3).

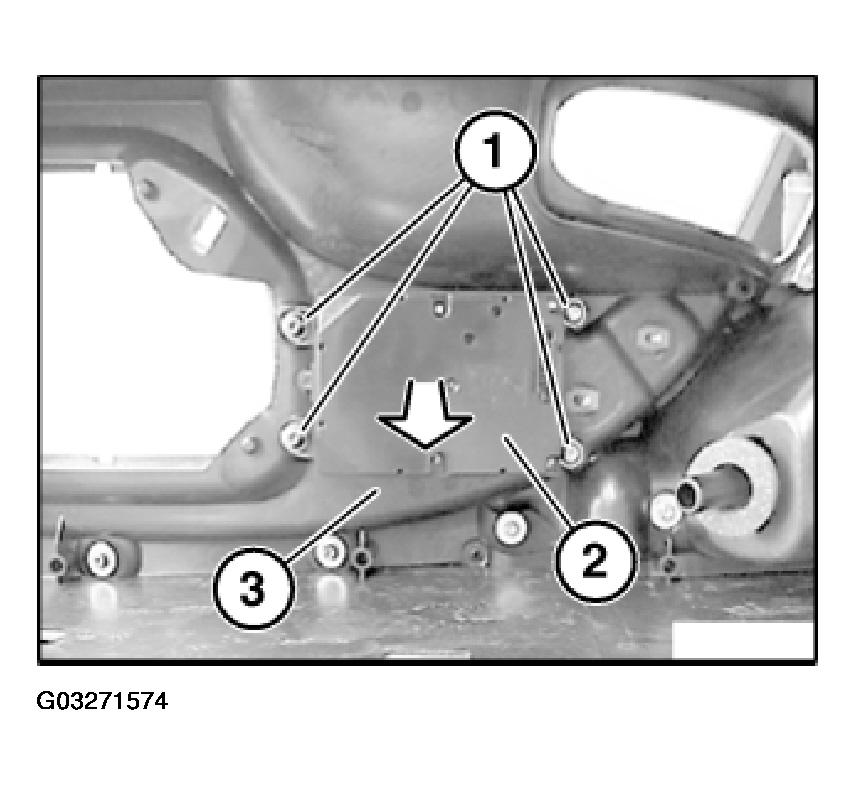

Fig 1: Removing Controller Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
