61 31 208 Removing and installing/replacing switch for front lumbar support

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outer cover on front seat. Refer to 52 17 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (COMFORT) .

Unlock catches (1) and remove switch for lumbar support (2) from cover (3).

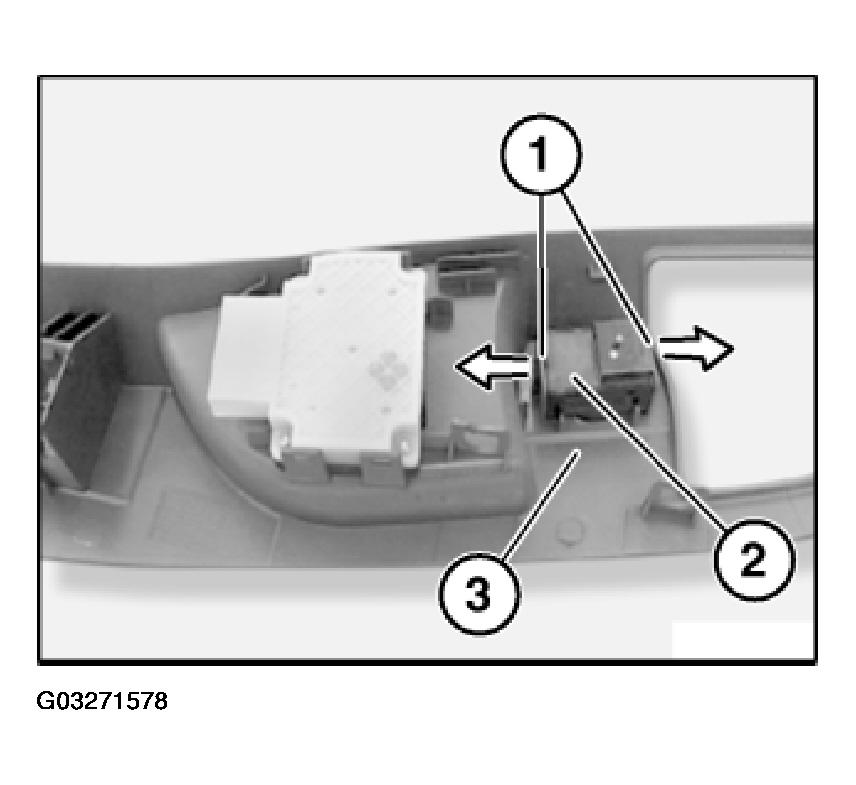

Fig 1: Removing Switch For Lumbar Support From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
