61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE .
Remove both battery earth leads at F03.
Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

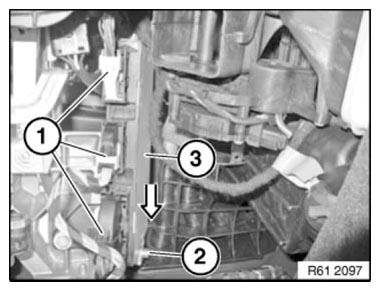

Disconnect plug connection (1).

Release screw (2).

Tightening torque 61 35 1 AZ .

Remove control unit for Car Access System (3) in direction of arrow.

Fig 1: Removing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

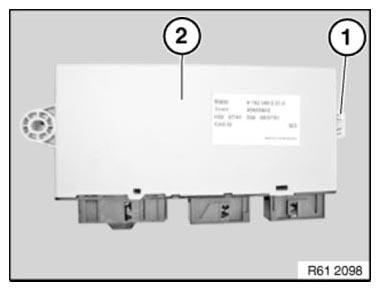

Installation note:

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Identifying Car Access System With Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out PROGRAMMING/ENCODING

For vehicles with rear-seat entertainment (RSE):

Teach in RSE master key via path:

Body
Rear seat entertainment system
Teach in radio remote control
Radio remote control
