61 35 196 Removing and installing (replacing) control unit for automatic operation of tailgate system

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove REAR RIGHT FLOOR PANEL .
Clamp off BATTERY EARTH LEAD .

NOTE: From 09/2010, the control unit is installed with a different placement of connector chambers:

(2) control unit to 09/2010

(1) control unit from 09/2010

Replacement:

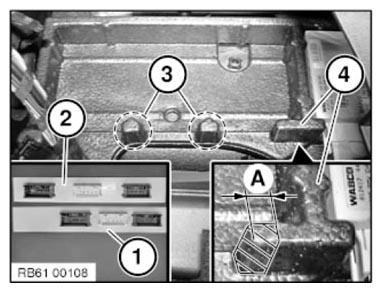

Fig 1: Identifying Control Unit Styrofoam Projection Removing Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

When control unit (1) is installed in vehicles with a production date up to 09/2010, the styrofoam projections (3) must be removed completely. Remove piece (A) = approx. 12 mm from styrofoam projection (4).

IMPORTANT: Do not remove styrofoam projection (4) completely.

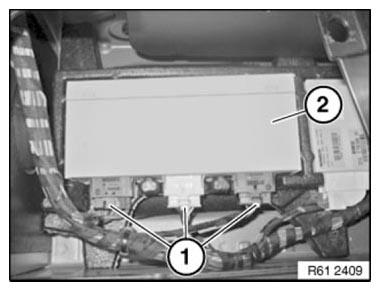

Unlock plug connections (1) and disconnect.

Remove control unit for automatic operation of tailgate system (2) upwards.

Installation note:

Make sure the control unit for automatic operation of tailgate system (2) is correctly seated.

Fig 2: Identifying Tailgate System With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
