61 35 360 Removing and installing/replacing control unit for camera-based driver assistance systems (KAFAS)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE .
Remove both battery earth leads at F03.
Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

Disconnect plug connection (1).

Release screw (2).

Tightening torque 61 35 2AZ .

Pull control unit (3) out of equipment carrier (4) in direction of arrow.

Installation note:

Make sure control unit (3) is correctly installed in equipment carrier (4).

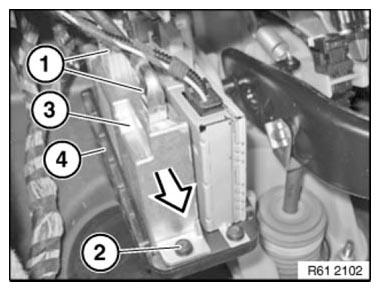

Fig 1: Pulling Control Unit Out Of Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

Carry out calibration:

Service function
Body
Display and information functions
Camera-based assist system
Calibration of lane departure warning
