61 31 137 Removing and installing/renewing USB interface connecting socket

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Pull off seal (2) in area of side panel (1).

Unclip side panel from dashboard (1) in direction of arrow with special tool 00 9 325 and feed out at a slant to the rear.

NOTE: Do not disconnect plug connection to switch for front passenger airbag deactivation.

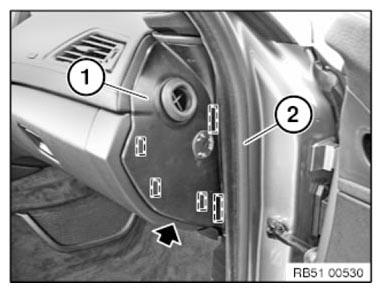

Fig 1: Identifying Side Panel And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Open glove box cover

Disconnect plug connection (1).

Release retaining clamps (2).

Press out USB interface connecting socket (3) in direction of arrow.

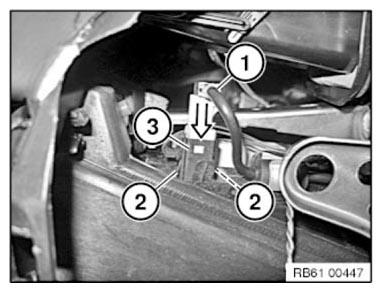

Fig 2: Pressing Out USB Interface Connecting Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged.

Make sure USB interface connecting socket (3) is correctly seated.

Necessary preliminary work

Remove SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION

NOTE: Open glove box

Disconnect plug connection (1).

Unlock retaining clips (2) on left/right.

Press out USB interface connecting socket (3) in direction of arrow.

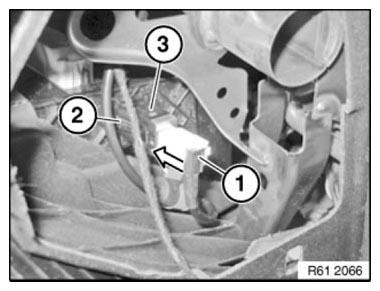

Fig 1: Pressing Out USB Interface Connecting Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged.

Make sure USB interface connecting socket (3) is correctly seated.
