61 35 001 Removing and installing (replacing) trailer module
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary work
- Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

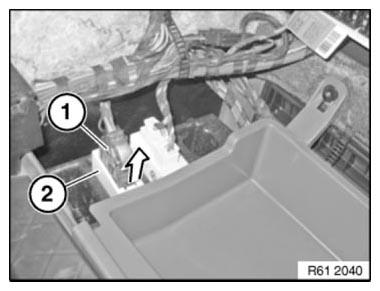

Disconnect plug connection (1).
Pull out trailer module (2) upwards in direction of arrow.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
