61 35 196 Removing and installing (replacing) control unit for automatic operation of tailgate system

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

DISCONNECT NEGATIVE BATTERY CABLE .
Remove both battery earth leads at F03.
Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

NOTE: From 09/2010, the control unit is installed with a different placement of connector chambers:

control unit to 09/2010
control unit from 09/2010

Replacement:

Control unit (2) is installed as shown in vehicles with a production date up to 09/2010.

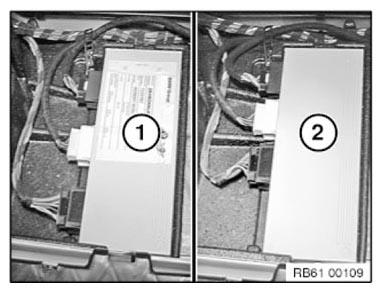

Fig 1: Identifying Control Units (To And From 09/2010)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Pull out control unit for automatic tailgate activation (2) in direction of arrow.

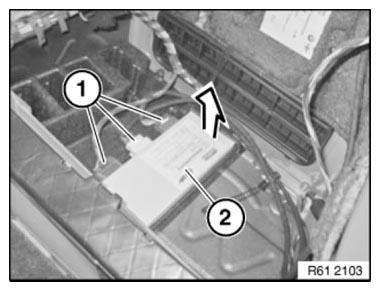

Fig 2: Pulling Out Control Unit For Automatic Tailgate Activation

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .
