61 35 360 Removing and installing/replacing control unit for camera-based driver assistance systems (KAFAS)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE .
Remove both battery earth leads at F03
Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (US ONLY) .

Disconnect plug connection (1).

Release screw (2).

Tightening torque 61 35 2AZ .

Pull control unit (3) out of equipment carrier (4) in direction of arrow.

Installation note:

Make sure control unit (3) is correctly installed in equipment carrier (4).

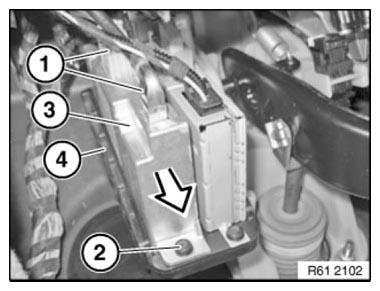

Fig 1: Pulling Control Unit Out Of Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

Carry out calibration:

Service function
Body
Display and information functions
Camera-based assist system
Calibration of lane departure warning
