61 13... Butt connector for repairing a plug connection

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

Identify cause of damage (e.g. sharp-edged body components, faulty electrical loads, jammed mechanisms, corrosion caused by ingress of water, etc.).
Read out fault memory
Eliminate cause of damage.
Disconnect battery negative terminal
Make sure that no safety-related system according to circuit diagram (e.g. antilock braking system, active rear-axle kinematics, airbags, etc.) are influenced. Otherwise replace faulty wiring harness or use repair cable (sourcing reference: BMW Parts Department)
Carry out function test and read out fault memories again
Eliminate new faults if applicable and clear fault memories

NOTE: The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid of fan connectors.
The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Department.

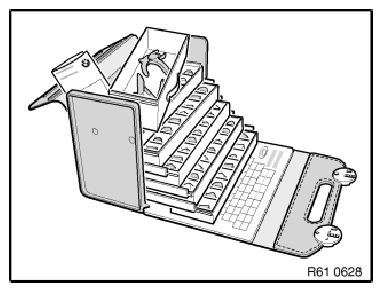

Fig 1: Identifying Special Tools For Vehicle Electrical System Repairing

Courtesy of BMW OF NORTH AMERICA, INC.

Choose repair kit.

Example: Repair kit, circular connector system D 2.5.

Fig 2: Identifying Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove following parts:

Pre-packaged end of cable with requisite wire cross-section
Crimp connector for selected wire cross-section
Shrink-fit hose

Fig 3: Identifying Cable With Requisite Wire Cross-Section, Crimp Connector And Shrink-Fit Hose
Courtesy of BMW OF NORTH AMERICA, INC.

Open secondary lock on housing.

Mark damaged contact (4) with socket number of housing and press it out of housing using appropriate special tool contained in special tool set 61 0 300 ).

Notes for OPENING CONTACTS AND LOCKS of different connector contact systems.

Fig 4: Identifying Cable Damage Contact With Socket Number

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Check maximum length of repair cable
If more than one wire is to be repaired, the individual interfaces must be offset so that the wiring harness is not too thick at the repaired point.

Adhere to following procedure:

Fig 5: Identifying Crimp Tool
