66 31 010 Adjusting remote sensor (LRR sensor) (2009-2010 only): Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

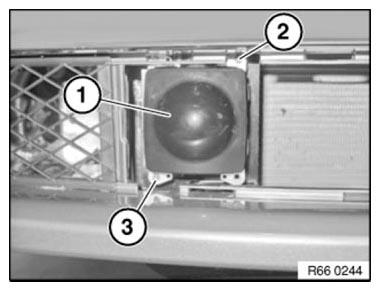

Carry out adjustment of long-range sensor (1) with special tool 36 1 130 by means of adjusting screws (2) and (3).

(2) = horizontal adjustment

(3) = vertical adjustment

Fig 1: Identifying Long-Range Sensor And Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

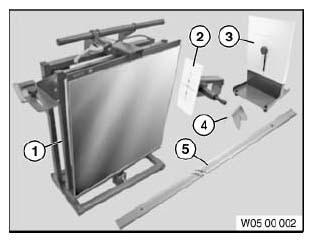

Special tool required:

Active Cruise Control ACC adjusting device, complete.

Order number: 81 10 0 021 292

Consisting of:

Mirror, complete
Wheel laser
Slotted diaphragm
Control bracket (for initial installation of rail)
Rail
Setup and Owner's Handbook (not shown)

Fig 2: Identifying Active Cruise Control ACC Adjusting Device Components

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100 ).

NOTE: Follow instructions for ACC ADJUSTMENT TOOL

NOTE:

To adjust the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.

Select ACC system in diagnosis. Start test module "ACC adjustment" (service functions) and proceed in accordance with instructions.

Handle ACC adjusting device in accordance with the manufacturer's instructions provided with device.
